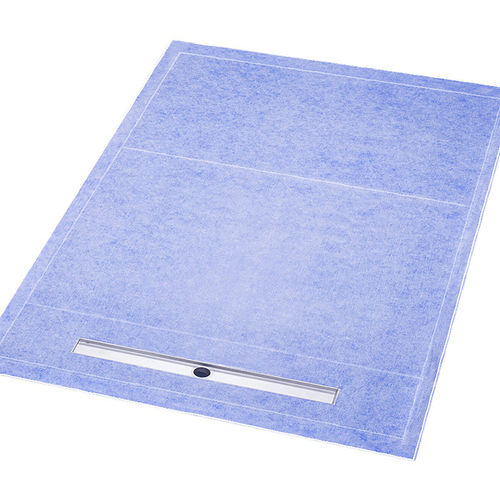

The Easy Drain Basic Line Shower Board, 1200 x 1100 mm, eliminates the extensive and time consuming slope creating process with cement or mortar. This Shower Board combines extremely easy installation and a low installation depth, including the Easy Drain Modulo M-1 build-in set.
DRAINAGE CAPACITY
according to EN 1253
GRATE
Height adjustable grate
SIPHON
Easy to clean
CUSTOM LENGTH
Can be shortened on site
SLOPE
Easy slope creation without mortar or cement
SHOWER DRAIN MODEL
Rectangular shower drain
SERIE
Shower boards
APPLICATION
New construction, Renovation
CERTIFICATION
DIN 18534, EN1253, ETAG-022
SUBSTRATE
Concrete / Sand Cement, Lewis sheets, Wooden floors
FLOOR FINISH
Cast / screed, Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic
INSTALLATION DEPTH (MM)
102
CONNECTION (⌀)
50 (Global) / 56 (UK)
HEIGHT ADJUSTABLE FEET INCLUDED
No
OUTLET TYPE
Rotatable outlet
WATER SEAL (MM)
50
INSTALLATION OPTION
Floor
OUTLET
Horizontal (Vertical outlet optional)
LOCATION IN SHOWER
Between two walls, Free in the floor, One-sided, Three-fold
MAX. DRAINAGE CAPACITY WALL (L/MIN)
41
MAXDRAINAGECAPSHOWERDRAIN
41
PRE-ASSEMBLED SEALING MEMBRANE (WPS)
Yes
SIPHON CHARACTERISTICS
Cleanable, Height adjustable, Pivotable & adjustable
GRATE
Brushed stainless steel / Tile
GRATE PATTERN
Zero / Closed
ADJUSTABLE GRATE
Yes
TAF FRAME TYPE
TAF (Tile Adjustable Frame)
FRAME MATERIAL
Stainless steel (304)
WHEELCHAIR ACCESSIBLE
Yes
