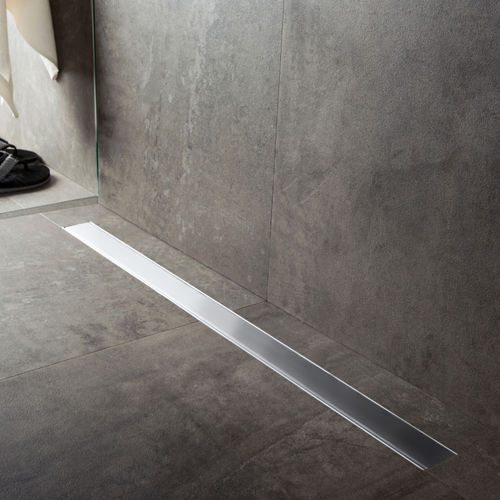

Rectangular shower base COMPACT

above floortileableconcrete

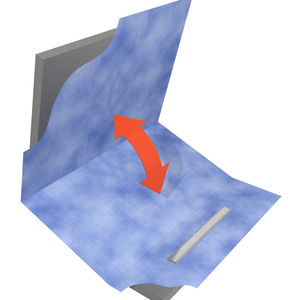

The new Easy Drain Compact Shower Board eliminates the extensive and time consuming slope creating process with cement or mortar. The Easy Drain Compact Shower Board combines extremely easy installation and low installation depth including the Easy Drain Modulo M-1 build-in set. DRAINAGE CAPACITY according to EN 1253 GRATE Height adjustable grate SIPHON Easy to clean CUSTOM LENGTH Can be shortened on site SLOPE Easy slope creation without mortar or cement Shower Drain model Rectangular shower drain Min. dimensions board (mm) 550x900 mm Application New construction, Renovation Certification DIN 18534, EN1253, ETAG-022 Substrate Concrete / Sand Cement, Lewis sheets, Wooden floors Floor finish Cast / screed, Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic Installation depth (mm) 63 Height adjustable feet included No Location in shower Free in the floor Max. drainage capacity wall (l/min) 41 MaxDrainageCapShowerDrain 41 Pre-assembled sealing membrane (WPS) Yes Siphon characteristics Cleanable, Height adjustable, Pivotable & adjustable Grate Brushed stainless steel / Tile Grate pattern Zero / Closed TAF frame type TAF (Tile Adjustable Frame) Frame material Stainless steel (304) Extension set available Yes
