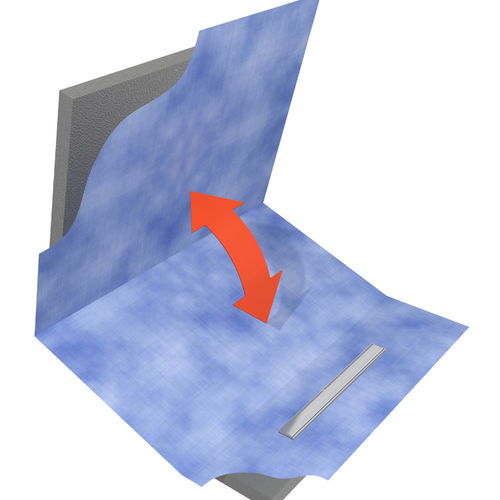

Rectangular shower base SBITAL-LINE-1

tileableABScustom

WATER PROTECTION SYSTEM 10-year warranty OUTLET Horizontal outlet CUSTOM LENGTH Can be shortened on site MATERIAL Anti-bacterial ABS Plastic MEMBRANE 100% Watertight SHOWER DRAIN MODEL Rectangular shower drain SERIE Shower boards APPLICATION New construction, Renovation CERTIFICATION DIN 18534, EN1253, ETAG-022 SUBSTRATE Concrete / Sand Cement, Lewis sheets, Wooden floors MAX. DRAINAGE CAPACITY ENTRANCE (L/MIN) 30 INSTALLATION DEPTH (MM) 146 CONNECTION (⌀) 50 (Global) / 56 (UK) HEIGHT ADJUSTABLE FEET INCLUDED No OUTLET TYPE Rotatable outlet WATER SEAL (MM) 50 INSTALLATION OPTION Floor OUTLET Horizontal (Vertical outlet optional) LOCATION IN SHOWER Free in the floor MAX. DRAINAGE CAPACITY WALL (L/MIN) 41 MAXDRAINAGECAPSHOWERDRAIN 30 PRE-ASSEMBLED SEALING MEMBRANE (WPS) Yes SIPHON CHARACTERISTICS Cleanable, Height adjustable, Pivotable & adjustable GRATE Brushed stainless steel FRAME MATERIAL Stainless steel (304) WHEELCHAIR ACCESSIBLE Yes
