Installation

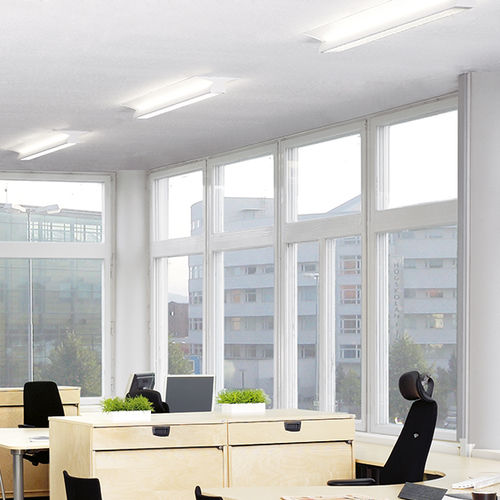

Luminaire for surface mounting in suspended ceilings with visible T-bars or fixed ceilings (25 mm).
Connection
Terminal block 3x1.5 mm², 1-phase through-wiring possible. Luminaires for dimming, 5-way snap-in terminal block, 1-phase through-wiring possible.
Design
Body and reflector of enamelled sheet steel with white (RAL 9003) structured finish.
Louvre
Beta – double parabolic reflector louvre with satin matt metallised aluminium side and cross blades with excellent reflection characteristics (> 92 %), integrated into a single unit. The louvre remains attached when lowered. Earthed.
Emergency lighting
Some variants available with emLED.
Dimming
Most models can also be equipped with other ballasts for dimming.
Miscellaneous
Also available in 32/35 W, special version. Can be equipped on special order with HF-ballasts for dimming. Indigo Clivus is designed to meet EN 12464-1 standards in some lamp options.
