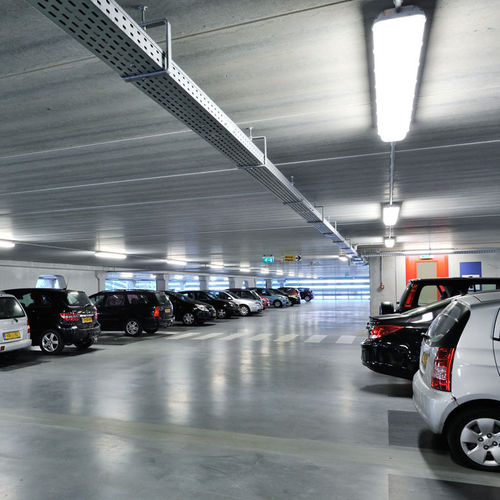

Surface mounted light fixture KAPTUR

LEDfluorescentlinear

Installation Surface mounted, on walls, wire and bracket. Connection Two cable entries fitted with blanking grommets Ø 22 mm – one at each end. Snap-in terminal block 5x2.5 mm² at each end with 3- phase through-wiring 5x2.5 mm² (18 W – 3x2,5 mm², no through-wiring possible). Design Body of polycarbonate. Mounting plate made of white enamelled plate. Louvre Diffuser of acrylic (PMMA, IK02) or polycarbonate (PC, IK08) with polyamide shade catch. Acrylic shade is pearl patterned and the PC shade has internal, lengthways grooves. Reflector Reflector of specular anodised aluminium available as an accessory. Dimming e-Sense Move – wireless lighting control between luminaires. Microwave sensor for on/off function, or absence dimming with the option of switch-off function. Miscellaneous In the HF design the luminaire satisfies the requirements for D-marking, i.e. limited surface temperature (90 °C) as set out in the Electrical installation regulations SS 436 40 00. Please note: luminaire zis not suitable for use in areas with direct sunlight.
