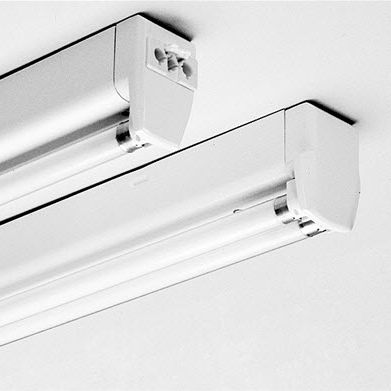

Basic T5 offers, with its compact dimensions, simple installation and its design language to create functional lighting solutions for many spaces.
Installation
Surface or wall mounted. Using special clips (see accessories), flexible fixing hole spacing or wire suspension.
Connection
Cable entries with blanking grommets. Knock-outs for surface mounted cables at each end. As standard fitted with 3-way through-wiring, 3x1.5 mm² and snap-in terminal block at each end (does not apply to 1x13/14 W). There is a model available with Wieland quick connectors at each end.
Design
Extruded aluminium body with enamelled sheet steel cover and plastic end-caps. White (RAL 9016) or aluminium enamelled (RAL 9006) finish. End-caps are ABS plastic – zero halogen.
Louvre
Beta– double parabolic reflector louvre with satin matt metallised aluminium side and cross-blades with excellent reflection characteristics (> 92 %), integrated into a single unit. The louvre remains attached when lowered. Unearthed. The louvre is exposed which means light emission occurs. Louvre only available for 1-lamp luminaires.
Reflector
Symmetrical light distribution metallised aluminium with matt surface available as an accessory. Same design for 1- and 2-lamp luminaires.
Dimming
Most models can also be equipped with other ballasts for dimming.
