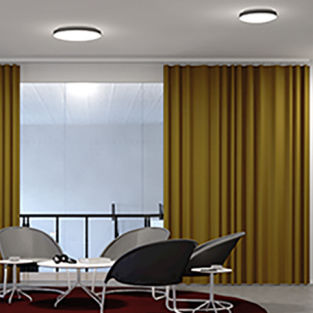

Surface mounted light fixture NOVE

LEDroundIP20

Installation Surface mounted on ceiling or wall (only without decor ring) Ø520 mm – two securing holes. IP 21, IP 44 with decor ring. Ø360/420 mm – three securing holes. IP 21, IP 44 with decor ring. IP 20 on wall. Connection Connects via 230 V, built-in LED driver. Snap-in terminal block 1.5 mm². 1-phase through-wiring possible. Surface mounted mains cable possible 180°. Design Luminaire body of matt white sheet steel. Diffuser of opal matt acrylic. Decor edging in white (RAL 9016) or brushed aluminium. Dimming e-Sense Detect – microwave sensor for on/off function or absence dampening 10-100 %. e-Sense Move - wireless control between luminaires. Microwave sensor for the on/off function, or absence dimming with the option of switch-off function. Luminaires with suffix -402 maybe supplied with different makes of driver dependent upon the luminaire size. This should be considered if the lighting is to be controlled via phase pulse control. LED-information 3000/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM. Driver life-time: up to 50.000 h/10 % (max failure).
