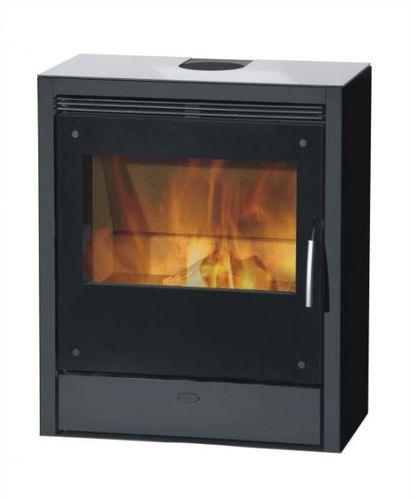

Wood heating stove BRIONI

contemporarysteel

Dimension (H x W x D) : 985/830/407 Weight [kg]: 248 Colour of stove body: Black Cover: Steel Size of the burning chamber - height [mm]: 487 Size of the burning chamber - width [mm]: 592 Size of the burning chamber - depth [mm]: 289 Glass front (visible) - height [mm]:: 435 Glass front (visible) - width [mm]:: 587 Diameter of flue outlet [mm]: 150 Height of lower edge of rear flue outlet at the top [mm]: 893 Outer diameter of the rear flueoutlet [mm]: 716 wood: + wood briquette: + brown coal briquets: + CO (g/cbm): <1,25 Particals (g/cbm): 73% Heating capacity: 173 Slow-combustion function: + Primary air automatics: + Full air automatics: + External air connection: + Heat storage with stones: - With no clearance: - Balanced flue stoves: + Flue gas mass flow g/s: 9 Flue gas temperature [°C]: 360 Minimum feed pressure: 0,12 Safety distance from combustible materials - Side [cm]: 25 Safety distance from combustible materials - Back [cm]: 15 Front (from glass front) [cm]: 120
