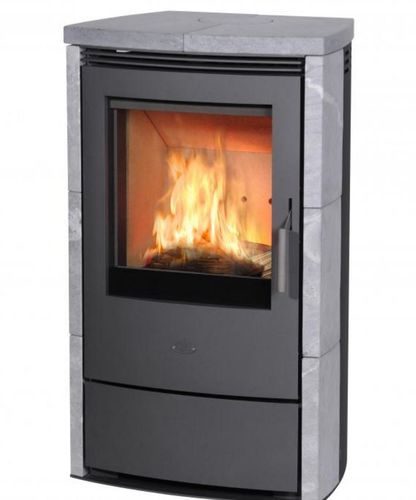

Wood heating stove MELTEMI

contemporarysoapstone

MELTEMI SOAPSTONE K3110 slow combustion stove with soapstone facing. Air regulation automatic. The heating mode can be adjusted with the regulator (burning wood or brown coal briquettes), the slow combustion function can only be used with brown coal briquettes. Optional external air connection. Nominal capacity 8/7 kw. Fuel to be used: wood, wood briquettes, brown coal briquettes. TECHNICAL INFORMATION Product code: K3110 Dimension (H x W x D) : 1046/656/524 Weight [kg]: 274 Colour of stove body: Grey Cover: Soapstone Size of the burning chamber - height [mm]: 506 Size of the burning chamber - width [mm]: 422 Size of the burning chamber - depth [mm]: 319 Glass front (visible) - height [mm]:: 455 Glass front (visible) - width [mm]:: 417 Diameter of flue outlet [mm]: 150 Height of lower edge of rear flue outlet at the top [mm]: 973 Outer diameter of the rear flueoutlet [mm]: 796 wood: + wood briquette: + brown coal briquets: + CO (g/cbm): <1,25 Particals (g/cbm): 73% Heating capacity: 126 Slow-combustion function: + Primary air automatics: + Full air automatics: - External air connection: + Heat storage with stones: - With no clearance: - Balanced flue stoves: - Flue gas mass flow g/s: 7/8 Flue gas temperature [°C]: 280 Minimum feed pressure: 0,12 Safety distance from combustible materials - Side [cm]: 30 Safety distance from combustible materials - Back [cm]: 20 Front (from glass front) [cm]: 100
