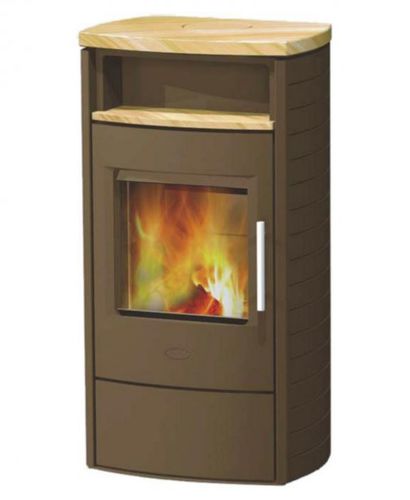

Wood heating stove RIO

contemporarysoapstonesandstone

Dimension (H x W x D) : 1211/572/430 Weight [kg]: 166 Colour of stove body: Brown Cover: Sandstone Size of the burning chamber - height [mm]: 450 Size of the burning chamber - width [mm]: 380 Size of the burning chamber - depth [mm]: 257 Glass front (visible) - height [mm]:: 410 Glass front (visible) - width [mm]:: 356 Diameter of flue outlet [mm]: 150 Height of lower edge of rear flue outlet at the top [mm]: 957 Outer diameter of the rear flueoutlet [mm]: 781 wood: + wood briquette: + brown coal briquets: + CO (g/cbm): <1,25 Particals (g/cbm): 73% Heating capacity: 148 Slow-combustion function: - Primary air automatics: - Full air automatics: - External air connection: + Heat storage with stones: - With no clearance: - Balanced flue stoves: + Flue gas mass flow g/s: 6,2 Flue gas temperature [°C]: 253 Minimum feed pressure: 0,12 Safety distance from combustible materials - Side [cm]: 20 Safety distance from combustible materials - Back [cm]: 20 Front (from glass front) [cm]: 100
