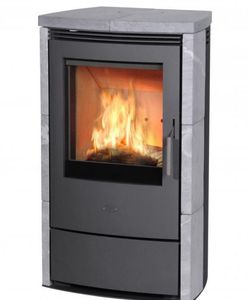

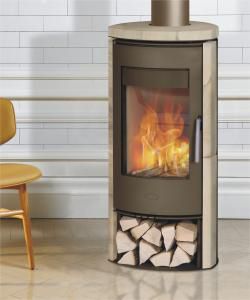

Wood heating stove ZANZIBAR

contemporarysteelsoapstone

Dimension (H x W x D) : 985/520/413 Weight [kg]: 105 Colour of stove body: Brown Cover: Sandstone Size of the burning chamber - height [mm]: 472 Size of the burning chamber - width [mm]: 300 Size of the burning chamber - depth [mm]: 280 Glass front (visible) - height [mm]:: 455 Glass front (visible) - width [mm]:: 300 Diameter of flue outlet [mm]: 150 Height of lower edge of rear flue outlet at the top [mm]: 930 Outer diameter of the rear flueoutlet [mm]: 764 Array: + CO (g/cbm): <1,25 Particals (g/cbm): 73% Heating capacity: 90 Slow-combustion function: - Primary air automatics: - Full air automatics: - External air connection: + Heat storage with stones: - With no clearance: + Balanced flue stoves: + Flue gas mass flow g/s: 5,5 Flue gas temperature [°C]: 300 Minimum feed pressure: 0,12 Safety distance from combustible materials - Side [cm]: 30 Safety distance from combustible materials - Back [cm]: 20 Front (from glass front) [cm]: 100
