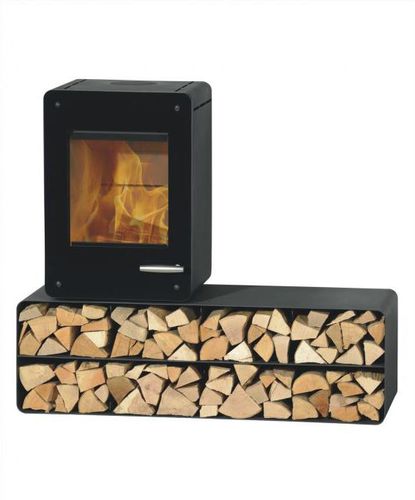

Wood heating stove SOLIN

contemporarysteel

Dimension (H x W x D) : 1138/1300/455 Weight [kg]: 0 Colour of stove body: Black Cover: Steel Size of the burning chamber - height [mm]: 450 Size of the burning chamber - width [mm]: 380 Size of the burning chamber - depth [mm]: 337 Glass front (visible) - height [mm]:: 410 Glass front (visible) - width [mm]:: 356 Diameter of flue outlet [mm]: 150 Height of lower edge of rear flue outlet at the top [mm]: 1114 Outer diameter of the rear flueoutlet [mm]: 938 wood: + wood briquette: + brown coal briquets: + CO (g/cbm): <1,25 Particals (g/cbm): 73% Heating capacity: 182 Slow-combustion function: - Primary air automatics: + Full air automatics: - External air connection: + Heat storage with stones: - With no clearance: - Balanced flue stoves: + Flue gas mass flow g/s: 7,5 Flue gas temperature [°C]: 400 Minimum feed pressure: 0,12 Safety distance from combustible materials - Side [cm]: 25 Safety distance from combustible materials - Back [cm]: 25 Front (from glass front) [cm]: 100
