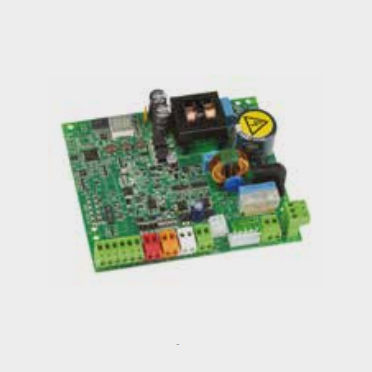

Access control control panel SPRINT M24

wall-mountedcommercial

Power supply (Vac) 230 (+6% -10%) – 50Hz F1 fuse 2,5 A T Accessories max. load (mA) 500 Flashing lamp 24Vdc - 15W Operating ambient temperature (°C) -20 +55 Function logics Semi-automatic/Semi-automatic "Step by Step"/Automatic/Automatic "Step by Step"/Automatic Safety/Semiautomatic B/Dead Man Work time Programmable (from 0 to 9 min and 50 sec.) Pause time Programmable (from 0 to 9 min and 50 sec.) Thrust force Adjustable on 50 levels Terminal board inputs Open/Partial open/Stop/Power Supply voltage/Bus G-WAY Terminal board outputs Flashing lamp/Signalling lamp 24Vdc/Programmable output/Motor Quick-fit connector Battery/RQFZ radio-frequency module 3PIN receiver/Encoder Programming 3 keys and display, simple or complete mode Programmable functions Simple Mode Operating logics/Pause time/Pushing force/Opening speed/Closing speed/ Opening slow-down/Closing slow-down/Master-Slave Programmable functions Complete Mode Pre-flashing/Safety Logic/Partial Open/Working Time/Slow-down speed/ Outputs/Partial Open Input and Stop (Safety edge)
