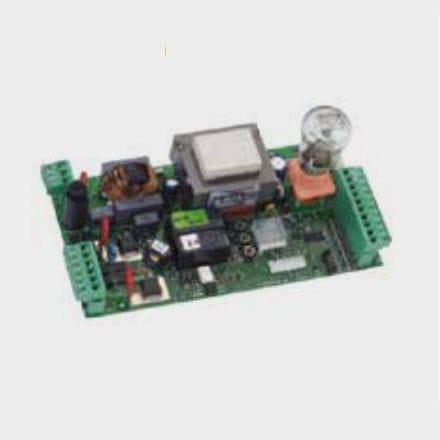

Access control control panel GEO 07
wall-mountedcommercial

access control control panel
access control control panel
Add to favorites
Compare this product


Characteristics

Use
for access control
Installation
wall-mounted
Options
commercial

Description

Power supply (Vac) 230 (+6% -10%) – 50Hz Max. absorbed power (W) 12 Max. motor load (W) 800 Accessories max. load (mA) 300 Operating ambient temperature (°C) -20 +55 Circuit protection fuses Network/accessories Function logics Automatic/semi-automatic Work time Programmable from 0 to 59 sec. (default 20 sec.) Pause time Programmable from 0 to 4 min. (default 2 min.) Electronic clutch Programmable on 50 levels Limit switch tripping mode 4 operation types Terminal board inputs Open/Encoder/Opening and closing safety devices/Opening and closing flashing lamp 230Vac - 60W Quick-fit connector 5 pin radio receiver Terminal board outputs Motor/230Vac external courtesy lamp/24Vdc Accessories power supply Incorporated courtesy lamp max. load (W) 25 External courtesy lamp max. load (W) 250
