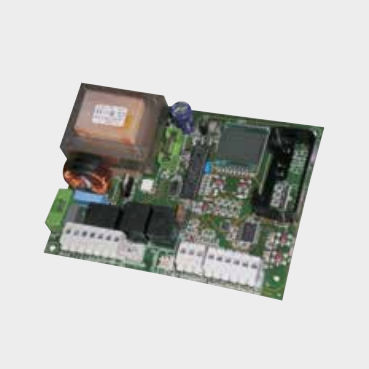

Access control control panel LYNX 06

wall-mountedcommercial

Power Supply (Vac) 230 (+6% -10%) – 50Hz Absorbed power (W) 3 Motor absorbed power (W) 500 Accessories max. load (mA) 500 Power supply and flashing lamp max. load 230 Vac 25 W Power supply and max. load of barrier status indicator lamp 24 Vdc 5 W Operating ambient temperature (°C) -20 +55 Protection fuses F1= T5A (transformer primary winding and motor) F2= T500mA (accessories and indicator lamp) Function logics Automatic/Automatic step by step/Semi-automatic/Semi-automatic step by step/Condominium Opening / closing time In self-learning mode during first manoeuvre Pause time Nine levels selectable up to a maximum of 4 minutes Motor power Adjustable on several levels Slow-down time Three selectable levels Obstacle detection With encoder Selectable functions Operates with or without encoder/Encoder sensitivity/Automatic re-closure/ Open input operation/Condominium function/Slow-down percentage/ Heating function/Immediate closure/Timer function/Soft start/Photocells operation/Maintenance request Terminal board inputs Opening/Closing/Photocells/Opening limit switches/Closing limit switches/ Stop/Mains power supply/Earthing Inputs in connector Radio module/Thrust capacitor/Encoder Terminal board outputs Accessories power supply/Flashing lamp/Motor/Indicator light
