Product overview
The GUBIA Acoustic Door System is a wooden acoustic door designed to deliver high thermal and acoustic comfort with measured sound attenuation up to 43 dBA. The system combines sustainable materials, modular components and manufacturing methods suitable for architectural projects requiring acoustic performance and tailored finishes.

Innovation and sustainability
Designed using materials from sustainable forest management and FSC-certified bamboo, the door integrates thermal insulation and sound-absorbing components to reduce environmental impact while achieving certified acoustic performance. Customization options allow adaptation to project specifications without compromising tested performance.

Components

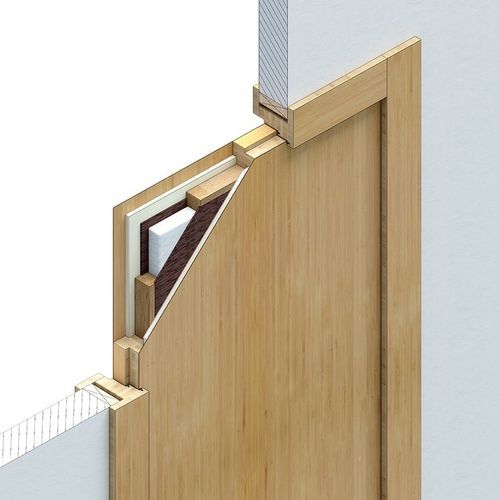

• Door leaf: internal solid bamboo perimeter structure with fiberboard facings; internal thermal insulating and sound-absorbing elements; external bamboo veneer.
• Frame: solid bamboo frame acting as exterior casing, with double overlap and EPDM acoustic seals.
• Seals and weatherstrips: EPDM acoustic seals on frame and double bottom acoustic weatherstrip to increase Rw and RA weighted reduction indices.
• Hardware: options for mechanical or electromechanical locks; spade or concealed stainless-steel hinges with 3D adjustment; hardware designed to comply with CE and UNE-EN standards.
• Materials and finishes: possible manufacture in other wood species with density equal to or greater than bamboo; varnished or lacquered finishes with multiple gloss levels and selectable fire classifications.
• Customization: dimensions, surface finishes and machining adapted to project requirements using CNC shaping and workshop assembly.

Development process and quality testing
The system has undergone acoustic and thermal testing in APPLUS+ laboratories. The reference tested sample was a single-leaf swing door with a total thickness of 72 mm. Measurements were reviewed with frequency-band corrections where building structure influence required adjustment to ensure result accuracy.

Aesthetics

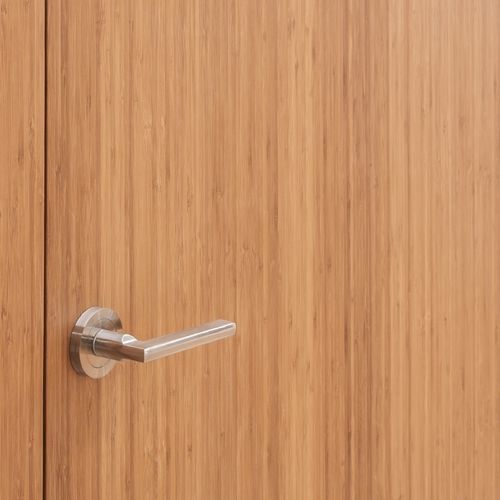

Natural wood veneers and a bamboo edge detail provide an architectural finish. Extensive customization in veneer, finish and edge design enables integration into varied interior and façade contexts while preserving acoustic performance.

Wood construction and energy efficiency
The use of sustainable wood, bamboo veneer and insulating cores contributes to the thermal efficiency of the building envelope, supporting lower operating energy demand over the building lifecycle.

Manufacturing techniques
Production employs CNC shaping, precision machining, gluing and controlled assembly in workshop environments to ensure dimensional accuracy, repeatability and consistent acoustic behaviour.

Technical specifications

• Acoustic attenuation: up to 43 dBA (weighted)
• Tested sample: single-leaf swing door, total thickness 72 mm (APPLUS+ laboratory tests)
• Leaf composition: solid bamboo perimeter structure, fiberboard facings, internal thermal and sound-absorbing elements, bamboo veneer exterior
• Frame: solid bamboo with double overlap and EPDM acoustic seals
• Sealing: EPDM acoustic seals; double bottom acoustic weatherstrip to increase Rw and RA indices
• Hardware options: mechanical or electromechanical locks; spade or concealed stainless-steel hinges with 3D adjustment; CE and UNE-EN compliant
• Materials: FSC-certified bamboo; option to manufacture in other wood species with density ≥ bamboo
• Finishes: varnished or lacquered surfaces, multiple gloss levels; selectable fire classification
• Manufacturing: CNC shaping, precision machining, gluing and workshop assembly
• Quality testing: acoustic and thermal tests performed in APPLUS+ laboratories
