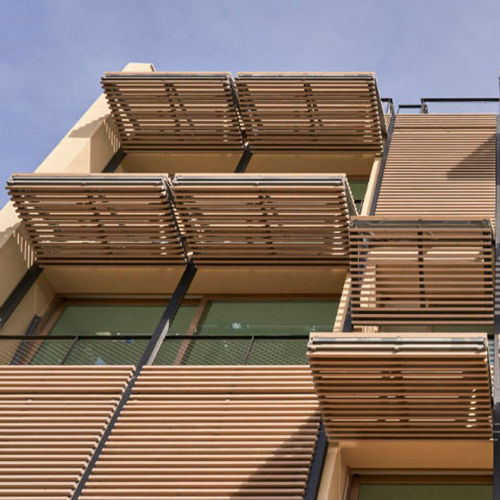

Folding solar shading GUBI-VFOLDING®

anodized aluminumstainless steelfor facade

Overview
The vertical folding lattice GUBI-vFOLDING is a patented solar control system designed for façade enclosures that combines functionality, aesthetics and sustainability. It provides automated regulation of natural lighting and ventilation through the vertical movement and folding of louvred panels, offering multiple opening positions and precise control.

Wooden lattices on facades
In sustainable façade design, timber lattices act as a technically and aesthetically refined solution. The use of wooden slats enables regulation of sunlight and ventilation, contributing to the energy efficiency of buildings by reducing the need for artificial lighting and improving natural ventilation.

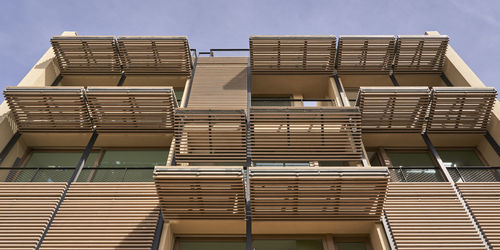

The vertical folding lattice GUBI-vFOLDING
GUBI-vFOLDING features a completely concealed motorised system that drives the vertical folding of two panels. The system’s frames are made of aluminium and joined by stainless steel hinges, and include horizontal and vertical reinforcements plus side guides with a multi-point opening fixing mechanism to ensure stability and durability. Frames fold outward, enabling varied profiles and slat distributions to be applied.

Versatility in vertical folding design
The system supports a variety of cladding profiles and finishes so it can be adapted to diverse architectural styles. It can be integrated where side guides are embedded in a building’s structure or adapted to multiple anchoring solutions. The side guides provide sufficient support capacity for the system’s loads.

Applications and sustainability
GUBI-vFOLDING is suitable for residential, commercial and cultural buildings where solar control, natural lighting and ventilation regulation are desired. Timber is used as the primary material for the louvres, aligning the system with sustainable construction practices and eco-efficiency goals. Its use reduces reliance on artificial lighting and contributes to lower building operating energy.

Multimedia
A demonstrative video and an MP4 illustrating the motorised folding operation are associated with the product (multimedia files hosted by the manufacturer).

Caractéristiques / spécifications techniques

• Commercial name: GUBI-vFOLDING
• Type: Vertical folding lattice / solar control system
• Patent status: Recently patented
• Operation: Concealed motorised system for automated vertical folding of two panels
• Frame material: Aluminium
• Hinges: Stainless steel
• Reinforcements: Horizontal and vertical frame reinforcements
• Guides: Side guides with multi-point opening fixing; adaptable anchoring solutions; can be embedded in building structure
• Cladding: Horizontal wooden slats (timber) with multiple profile and finish options
• Folding direction: Frames fold outward
• Functionality: Regulation of natural lighting and ventilation; solar control; energy efficiency benefits
• Applications: Residential, commercial, cultural façades
