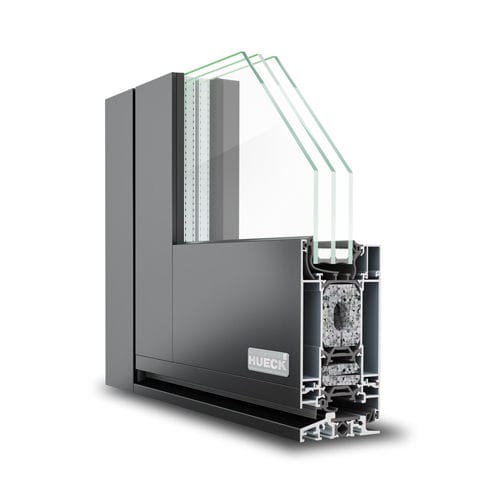

Aluminum door profile LAMBDA DS 075

thermally-insulatedburglar-proofwind-proof

The HUECK Lambda DS 075 door construction combines all of the advantages of aluminium with the HUECK door systems' intelligent modular system. Product and processing advantages •Stable profile construction with a construction depth of 75 mm •Glass thicknesses and door panels up to 54 mm can be used •Flush inside and outside for inward and outward opening doors or raised on the inside with additional sealing level •Door panels that overlap the sash on one or both sides •Various floor finishes available with sills (20 mm or 15 mm), without sills, or with no sills and drainage. •Optimized “Lambdatherm” insulating zone with insulating bridges for direct screwing of fittings •You can choose between standard or heavy-duty roller door hinges, as well as concealed or traditional attachment door hinges. •Production-efficient through component sharing and common fittings for inward and outward opening doors •Possible door sizes (max. width / max. height): 1500 mm / 3100 mm •Max. door leaf weight of 300 kg •Compatible with HUECK's Lambda WS 075 window series and Volato SLS 075 and SLS 075 CS sliding series System data •Thermal transmission coefficient (EN 10077-2): Uf ≥ 1.5 W/m2K •Air permeability (EN 12207): class 4 •Water tightness (EN 12208): class 7A •Wind-load resistance (EN 12210): class C2/B2 •Burglar resistance (EN 1627 et seq.): up to class RC3 •Soundproofing (EN ISO 10140 / EN ISO 717-1): Rw up to 42 dB •Systems for emergency exits in accordance with EN 179 or anti-panic doors in accordance with EN 1125 •Can also be combined up to the double-sash full panic door with RC3 burglar resistance
