aluminum door profile / security / thermally-insulated / waterproof
LAMBDA DS 090

Add to MyArchiExpo favorites
Compare this product Don’t compare this product

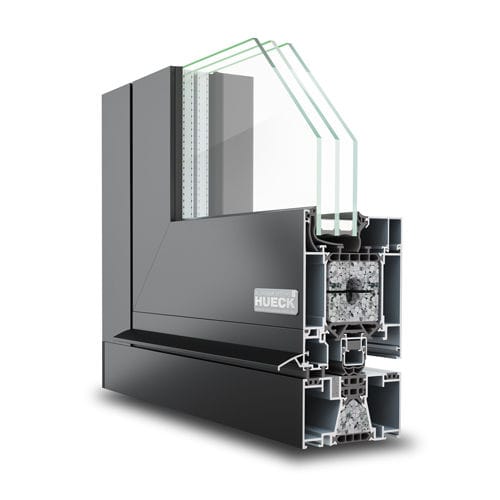

aluminum door profile / security / thermally-insulated / waterproof aluminum door profile / security / thermally-insulated / waterproof - LAMBDA DS 090
{{requestButtons}}

Characteristics

  • Material:

    aluminum

  • Technical characteristics:

    security, thermally-insulated, waterproof

Description

(Lambda duo 90) highly thermally insulated, 90 mm profile depth

Product and processing advantages

Greatly extended profile range
Sturdy, long-life profile construction with 90 mm profile depth
Glass thicknesses and door inserts of 24-68 mm can be used Flush inside and outside for doors opening inwards and outwards
Optimised insulation zone with insulating bridges for direct screwing of hardware parts
Production-optimised through use of the same parts and the same hardware (door hinges) for doors opening inwards and outwards
Compatible with the HUECK Lambda WS 090 windows series
System data

Realisable door sizes (max. width / max. height): 1300 mm / 2600 mm
max. weight: 250 kg
Coefficient of heat transmission (standard elevation width): Uf ≥ 1.3 (W/m²K)
Burglar resistance (EN 1627): up to RC 3 (WK 3)
Soundproofing (EN ISO 10140 / EN ISO 717-1): Rw up to 43 dB
Water tightness (EN 12208): class 7A
Air permeability (EN 12207): class 4
Resistance to wind load (EN 12210): class C3/B3
