Aluminum door profile A72

aluminum door profile
aluminum door profile
Add to favorites
Compare this product


Characteristics

Material
aluminum

Description

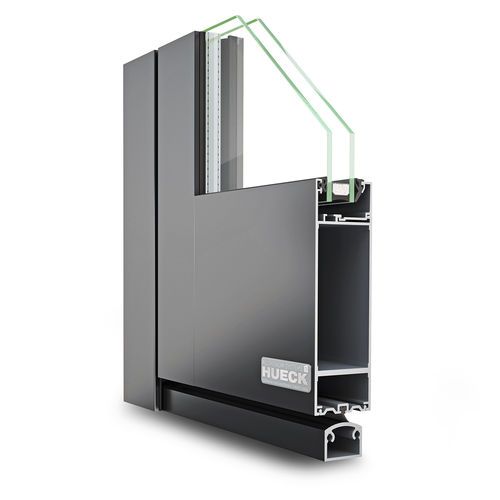

uninsulated, 45 mm profile depth Construction Non-insulated aluminium door Max. sash weight 150 kg Glass thickness between 5 mm and 26 mm Optional round or square glazing beads Escape door systems in accordance with EN 1125 and EN 179 Elevation width Narrow elevation width of fixed and sash frame from 137.5 mm Profile depth Fixed frame: 45 mm, Sash: 45 mm Flush inside and outside Gaskets Glazing/rebate gasket: narrow elevation widths on inside and outside, gaskets can be drawn in continuously Opening types Single- and double-leaf Opening inwards and outwards Hardware All standard hardware variants Barrel hinges made of aluminium, steel or stainless steel and screw-on type hinges made of aluminium. Test results Uf = 7.0 W/(m²×K)
