Panel cladding SHIPLAP

stripin WPCinterlocking

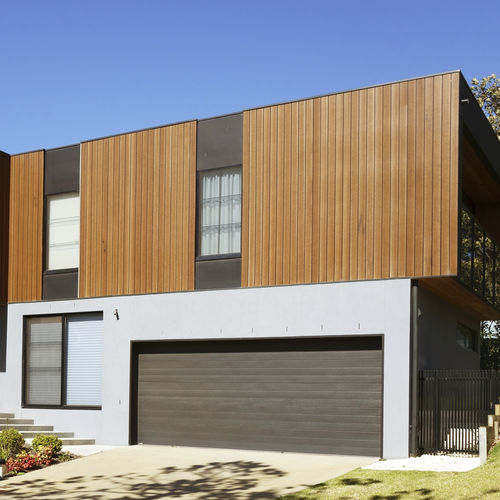

INNOWOOD’s Shiplap Cladding System features an interlocking tongue and groove design to achieve concealed fixings while providing a conventional timber appearance with a warm, clean and durable finish. Consistently uniform shadow lines between the boards become architectural features when the boards are installed either horizontally or vertically. INNOWOOD’s V Joint Shiplap Cladding system comes in 25 mm thick boards with ‘V’ shaped tongue and groove shadow line rebated joints. INNOWOOD V Joint Shiplap boards overlap one another, concealing the fixing and locking in the boards to give a clean finish with effective board coverages of 105mm, 165mm and 205mm. These profiles can be mixed and matched to achieve varying board widths, creating a unique architectural feature. INNOWOOD Secret Fixed Shiplap Cladding system is available in board thicknesses of 33mm that delivers concave and convex shaped boards that utilises tongue and groove shadow line rebated joints. Our Secret Fixed Shiplap boards overlap one another concealing the fixing and locking in the boards to give a clean finish with board coverage of 150mm. Starter and Corner Trim Angles are designed to control and conceal material movement, while simultaneously helping to keep the board secured in place and also to improve the appearance of the corners and edges providing a clean finish. INNOWOOD material much like natural timber expands and contracts with change in temperature, which is inevitable. INNOWOOD has developed the following options to control product movement at board ends and Butt joints APPLICATIONS Residential Applications Commercial Applications Health / Aged Care Facilities
