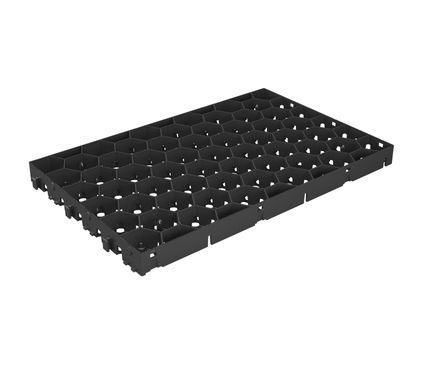

Stabilization system geocell URBANGRAVEL®

three-dimensional

Description
Honeycomb module without geotextile membrane used to consolidate and stabilise gravel surfaces in urban environments such as public car parks, access roads and heavy-traffic areas in industrial and commercial sites. Interlocking system secures adjoining modules while the honeycomb cell geometry optimises natural rainwater drainage.

Features

• Aggregate stabilisation module suitable for heavy traffic areas.
• Interlocking system for maximum stability of adjoining modules.
• Honeycomb cell design for optimized rainwater drainage.
• Optional zone markers to delineate parking spaces.
• Driveable, non-slip surface.
• Quick and easy to lay.

Compatibility

• Stabilisation modules
• Aggregate modules
• Driveways and parking areas
• Crushed aggregate (fill)
• Hybrid surface finishes

Installation & Application
Recommendation: fill the honeycomb tiles to the top with crushed aggregate graded between 5 mm (min.) and 16 mm (max.). Do not use with hot asphalt.

Additional information

• Made in France.
• 10 year warranty.
• ISO 9001 certified.
• ISO 14001 certified.
• Label MORE.
• Information sorting.
• Manufactured from recycled material.

Technical specifications

• Length (mm): 600
• Width (mm): 390
• Thickness (mm): 40
• Wall thickness (mm): 3
• Cell diameter (mm): 60
• Color: Grey
• Material: Recycled polyethylene
• Usable area (m²): 0.2234 (i.e. 4.4763 tiles per 1 m²)
• Weight (kg): 0.890 (i.e. 3.80 kg/m²)
• Number per pallet: 104
• Stackable: Yes
• Packing: Pallet of 104 parts
