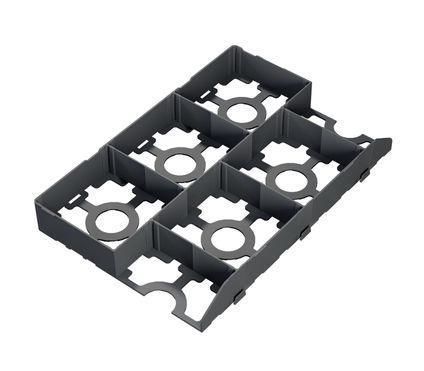

Stabilization system geocell URBANIT®

Product overview
100% recycled black polyolefin module for use with 15 x 15 x 6 cm block pavers. URBANIT® block paving modules are easy to lay and enable the creation of patterns by combining block pavers of different colours. Designed to create water-permeable surfaces such as car parks, access roads, footpaths and cycle paths. The module makes staggered laying easy and features an interlocking system to ensure maximum stability of adjoining modules.

Main features

• Stabilisation module for 6 pavers laid staggered.
• Compatible with all URBANIT stabilisation modules.
• Designed for use with 15 x 15 x 6 cm block pavers.
• Interlocking system for maximum stability of adjoining modules.
• Customisable visual layout by combining different paver colours.

Keypoints

• Optimal and natural drainage of rainwater (water-permeable solution).
• Quick and easy to lay.
• Suitable for creating water-permeable car parks and other permeable paved areas.

Installation & Application

• Recommended block paving format: 15 x 15 x 6 cm (allow approx. 40 paving blocks per m2).
• Can be laid on gradients up to 2%.
• Not designed for intensive use by heavy goods vehicles.
• Do not use with hot asphalt.
• Do not drive over empty modules before paving is installed.

Certifications & additional information

• Made in France.
• 10 year warranty.
• ISO 9001 certified.
• ISO 14001 certified.
• Label: MORE.
• Recycled material; information sorting provided.

Technical specifications

• Height in mm: 57
• Length in mm: 476
• Width in mm: 319
• Color: Black
• Material: recycled polyolefin
• Usable area in SQM: 0,1518 m2 i.e. 6,5876 tiles for 1 m2
• Weight KG: 0,518 kg i.e. 3,4 kg/m2
• Number per pallet: 138
• Packing: Pallet of 138 pcs i.e. 20,9484 m2
• Stackable: Yes
