Pavement stabilizer URBANIT®

for green tramwayaggregatepaverstone

Description

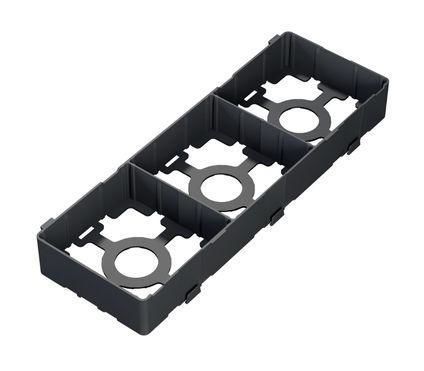

100% recycled black polyolefin module for use with 15 x 15 x 6 cm block pavers. URBANIT® block paving modules are easy to lay and enable the creation of patterns by combining block pavers of different colours. Use this module to delimit areas when building water-permeable car parks with the URBANIT® range. URBANIT® 3-paver modules can also be used to form pedestrian walkways within 100% planted or 100% aggregate-surfaced URBANIT® car parks.

Main features

• Stabilisation module for 3 pavers laid straight
• Compatible with all URBANIT® stabilisation modules
• Designed for 15 x 15 x 6 cm block paver format

Compatibility

• Driveways and parking spaces
• Pavers
• Hybrid finishes
• Stabilisation modules
• Stabilisation tiles for block pavers

Keypoints

• Optimal and natural drainage of rainwater
• Quick and easy to lay

Product highlights & certifications

• Made in France
• 10 year warranty
• ISO 9001 certified
• ISO 14001 certified
• Label MORE
• Information sorting
• Recycled material

Installation & Application

• Recommended paving block: 15 x 15 x 6 cm (allow 40 paving blocks per m²)
• URBANIT® range is not designed for intensive use by heavy goods vehicles
• Do not use with hot asphalt
• Do not drive over empty modules
• Can be laid on gradients of up to 2%

Caractéristiques / spécifications techniques

• Height: 57 mm
• Length: 476 mm
• Width: 160 mm
• Color: Black
• Material: Recycled polyolefin
• Usable area: 0.0762 m² (i.e. 13.1233 modules per 1 m²)
• Weight: 0.293 kg (i.e. 3.8 kg/m²)
• Number per pallet: 266
• Stackable: Yes
• Packing: Pallet of 266 parts (i.e. 20.2692 m²)
