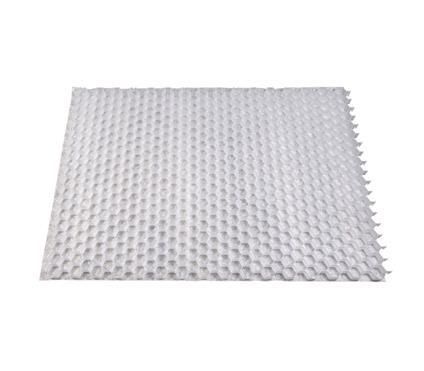

Stabilization system geocell ALVEPLAC® SIMPLE

three-dimensional

Description
Stabilization panel with integrated geotextile for gravel in landscaping applications. Suitable for pedestrian paths, garden paths, parking areas, driveways and light vehicular access in private, public, commercial or industrial contexts. Provides an aesthetic finish (panel is concealed once the surface is completed).

Construction features

• Geotextile (60 g/m²) permanently bonded to the cells thanks to the exclusive Jouplast® welding process during injection.
• Honeycomb-cell panel with integrated locking system to ensure good retention between panels.
• Cells designed to be filled with crushed gravel (recommended grain size 5/15 or 8/16).

Recommended uses

• Pedestrian paths and light vehicular lanes
• Garden paths, gravel terraces
• Parking areas (fire-fighting vehicle access possible)
• Pedestrian zones, public spaces, commercial and industrial uses
• Soil consolidation for gravel surfaces; prevents ruts and puddles

Key features

• Keeps gravel in place
• Rapid rainwater infiltration
• Geotextile permanently fixed to the cells
• Eliminates ruts and puddles
• Integrated locking system ensuring good panel cohesion
• Suitable for vehicle passage with 20 t axle load (fire-fighting access)
• Lightweight product for easy handling
• Installation on slopes: up to 10% for vehicular lanes and 15% for pedestrian areas
• Option to add marking plugs for parking layout (dedicated references)
• Resistant to UV, frost and temperatures from -30°C to +60°C
• Made in France, 10-year warranty, ISO 9001 and ISO 14001 certified, made from recycled material

Filling and installation
Fill the cells with crushed gravel with particle size between 5 (min.) and 16 (max.) mm — for example 5/15 or 8/16. Ensure a final cover of approximately 2 cm of gravel to hide the panel and guarantee system performance. For heavy traffic, use the reference adapted to urban/high-traffic use. Do not use with hot mix asphalt.

Technical specifications

• Length mm: 1166
• Width mm: 800
• Height mm: 30
• Material: Recycled polypropylene
• Usable surface (m²): 0.9085
• Weight: 1.7 kg (i.e. 1.87 kg/m²)
• Wall thickness: ± 1.2 mm
• Cell diameter: 42 mm
• Gravel volume / weight per m²: 40 litres - 60 kg
• Packaging: Pallet of 38 pieces
• Stackable: Yes
