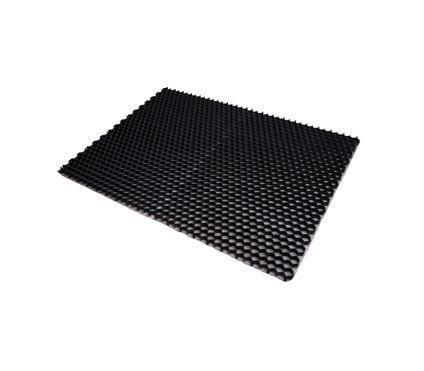

Stabilization system geocell ALVEPLAC® DOUBLE

three-dimensional

Overview
Stabilisation panel with integrated geotextile for gravel in landscaping applications. Suitable for pedestrian paths, garden drives, parking areas, tracks and access ways for private, public, commercial or light industrial use. Provides an inconspicuous finish once filled and covered.

Main elements

• Integrated geotextile (60 g/m²) permanently bonded to the cells via Jouplast® welding during injection molding.
• Integrated assembly system ensuring secure locking between panels.
• Keeps gravel in place and consolidates the installation.
• Gravel stabilizer / cellular panel with geotextile.

Recommended applications

• Pedestrian paths
• Garden drives
• Parking areas
• Tracks and access ways
• Circulable driveways (private, public, commercial, industrial)

Advantages & key benefits

• Maintains gravel in position.
• Rapid surface water infiltration.
• Prevents ruts and standing water.
• Quick and easy installation.
• Aesthetic finish: panel becomes invisible after completion.

Filling & performance
The product is effective once panels are filled with gravel and covered with a 2 cm layer. Recommended infill gravel sizes: 5/15 or 8/16 mm.

Additional information

• Made in France.
• 10-year warranty.
• Certifications: ISO 9001, ISO 14001.
• Label MORE, info-tri and use of recycled material.
• Packaging: pallet of 19 pieces.

Available colours

• White
• Grey

Characteristics / technical specifications

• Length mm: 1166
• Width mm: 1600
• Thickness mm: 30
• Usable surface m²: 1.817 m²
• Weight kg: 3.4 kg
• Stackable: yes
• Packaging: pallet of 19 pcs
