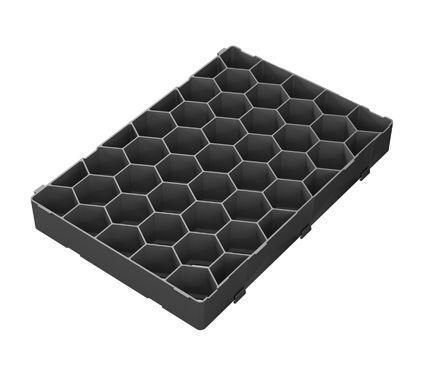

Aggregate stabilizer URBANIT®

for soilturf

Product description

100% recycled polyolefin module to use with 15x15x6 cm blocks and fill with aggregate. Use this product to create water-permeable car parks, access roads, footpaths and similar urban surfaces. URBANIT® modules are easy to lay and enable creative combinations of finishes for urban space design.

Key features

• Interlocking system to ensure maximum stability of adjoining modules.
• The structure of the pavers can absorb the effects of expansion, preventing them from lifting.
• Aggregate stabiliser module.
• Compatible with all URBANIT stabilisation modules.
• Optimal and natural drainage of rainwater.
• Quick and easy to lay.

Applications & usage

• Use with 15x15x6 cm blocks and fill with crushed aggregate graded between 5 mm (min.) and 10 mm (max.).
• Suitable for water-permeable car parks, access roads, footpaths, driveways and parking spaces (not designed for intensive use by heavy goods vehicles).
• Do not use with hot asphalt.
• Modules can be cut using a disc cutter.
• Where necessary, modules can be driven on before filling to facilitate unloading of aggregate.
• Can be laid on gradients of up to 2%.

Certifications & labels

• Made in France
• 10 year warranty
• ISO 9001
• ISO 14001
• Label MORE
• Information sorting
• Recycled material
• FDES

Compatibility

• Driveways and parking spaces
• Aggregate
• Hybrid finishes
• Stabilisation modules
• Aggregate modules

Caractéristiques / spécifications techniques

• Height in mm: 57
• Length in mm: 476
• Width in mm: 319
• Color: Black or White
• Material: Recycled polyolefin
• Usable area in SQM: 0,1518m2 i.e 6,5876 blocks for 1m2
• Weight KG: 0,93kg i.e 6,12kg/m2
• Number per pallet: 138
• Stackable: Yes
• Packing: Pallet of 138 parts i.e 20.9484 m2
