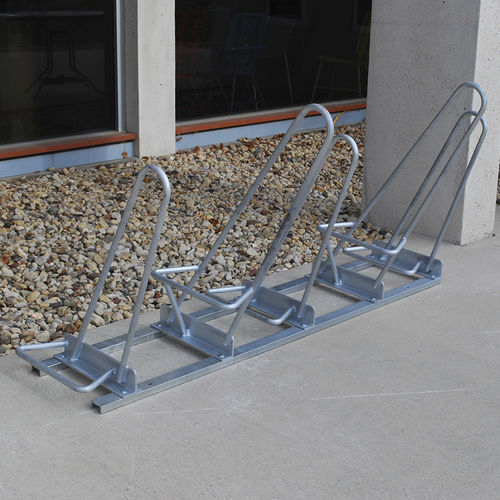

Floor-mounted bike rack SHARK™ UP

for public spacegalvanised steelpowder-coated steel

The Shark™ Up rack is designed for high density bike parking. The Shark Up is economical, functional, and compact. It features front wheel stops for stable parking, a 3/4" solid rod for “U” locks, 16" clearance between bikes, tamper-resistant construction, and ease of installation. This bicycle rack is our most compant lockable bike rack, ideal for indoor or outdoor locations where space may be a concern. Finishes Available in a galvanized or powder coat *Note: Rails are Galvanized regardless of finish selection Measurements SHU-1 | 30" W x 35" H x 6" L | 2-bikes SHU-SNG-3 | 32" W x 36" H x 37" L | 3-bikes SHU-SNG-5 | 32" W x 36" H x 69" L | 5-bikes SHU-SNG-7 | 32" W x 36" H x 101" L | 7-bikes SHU-SNG-8 | 32" W x 36" H x 117" L | 8-bikes SHU-SNG-9 | 32" W x 36" H x 133" L | 9-bikes SHU-DBL-8 | 44" W x 36" H x 64" L | 8-bikes *Height measurement is from grade to top of bike rack. See CAD files below for details Mounting Options Surface Mount (1 bike) or Rail Mount (3-9 bike options)
