Digital thermostat MRC

smartfor underfloor heatingrecessed

Overview

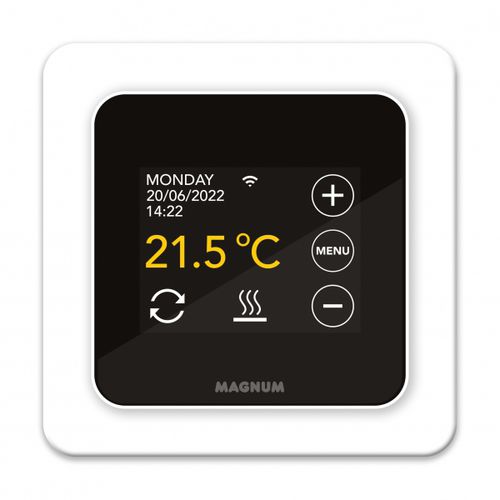

The MAGNUM Remote Control (MRC) is a smart WiFi thermostat for electric and hydronic underfloor heating systems. It combines a built-in room sensor with a supplied 12K floor sensor and offers local touch control, remote app control and voice assistant integration.

Key features

• Self-learning control: automatic calculation of heating start based on set schedules.
• Wood floor function: floor temperature limited to < 28°C for safe use on wooden floors.
• Full touch colour display with night mode.
• Remote control via iOS & Android app.
• Voice control compatibility with Google Assistant and Amazon Alexa.

Models / Article numbers
825100 | MAGNUM Remote Control WiFi thermostat incl. floor sensor | Polar white – RAL 9010
825101 | MAGNUM Remote Control WiFi thermostat incl. floor sensor | Graphite black – RAL 9011

3 in 1 operation
The MRC can be operated directly on the thermostat touchscreen, remotely via the mobile app (iOS and Android) and by voice assistants. Temperature settings and floor temperature queries are supported remotely.

Specifications

• Type: Smart WiFi thermostat
• Suitable for: Electric and hydronic systems
• Controls: Full touch colour display
• Sensors: Built-in room sensor and floor sensor (12K included)
• Voltage: 230V – 50/60Hz
• Maximum load: 16A / 230V
• Temperature range: +5 / +40°C
• Protection: IP21
• WiFi: 2.4 GHz
• Programmable: up to 3 periods per day

Technical details & functions

• Full touch screen and colour display with night vision
• Self-learning algorithm and automatic start-up menu
• Open window detection
• Slow start function
• Automatic summer/winter time
• Multilingual programming
• Backup memory
• Works with Amazon Alexa and Google Assistant

Installation method
Suitable for electric heating systems and compatible with standard 50 mm recessed mounting boxes.

Package content

• MRC thermostat
• Installation instructions
• User manual
• Floor sensor 12K

Warranty
2 year guarantee covering electrical operation and floor sensor.

Characteristics / technical specifications

• Type: Smart WiFi thermostat
• Controls: Touch screen
• Sensors: Room and floor sensor (12K)
• Voltage: 230V – 50/60Hz
• Max. load: 16A / 230V
• Temperature range: +5 / +40°C
• WiFi: 2.4 GHz
• App: iOS & Android
• Voice assistants: Google Assistant, Amazon Alexa
