Digital thermostat MRC2

programmablesmartmanual

Product overview

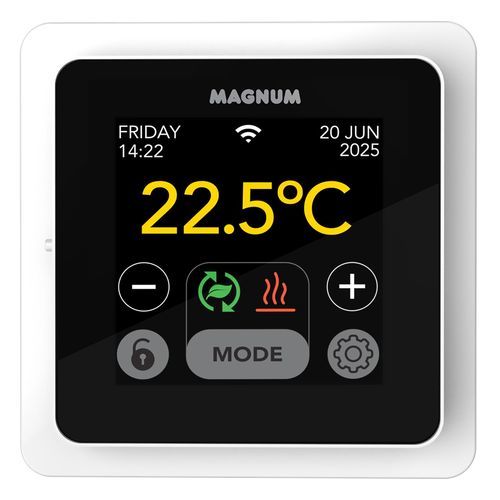

The MAGNUM Remote Control 2 (MRC2) is a smart WiFi thermostat designed for electric and hydronic underfloor heating. It features a 2.75-inch colour touchscreen, integrated room sensor and an included 12K floor sensor. The thermostat supports OTA updates, voice assistants and an ECO mode with presence detection.

Smart operation
The MRC2 uses adaptive algorithms to learn required heating start times: specify the target temperature and time, and the thermostat calculates heating start and duration to meet the setpoint. Programmable up to 3 periods per day and controllable via the touchscreen or the iOS/Android app.

Wooden floors
A dedicated wooden-floor function limits floor temperature to < 28°C, ensuring safe operation for electric underfloor heating on timber subfloors.

Supplied as standard
The MRC2 is supplied as standard with MAGNUM Mat, Decoupling system, Cable and Foil kits. The flush-mounted unit fits most single and multiple switch frames. Available colours: Polar White (RAL 9010) and Graphite Black (RAL 9011).

Articles
Art.nr. | Description | Color code
825400 | MAGNUM Remote Control 2 WiFi thermostat incl. floor sensor | Polar white – RAL 9010
825401 | MAGNUM Remote Control 2 WiFi thermostat incl. floor sensor | Graphite black – RAL 9011

Specifications
Type: Smart WiFi thermostat
Suitable for: Electrical and hydronic underfloor heating systems
Controls: Full colour touchscreen (2.75 inches) or app
Sensors: Built-in room sensor and floor sensor (12K)
Voltage: 230V – 50/60Hz
Maximum load: 16A / 230V
Temperature range: +5 / +40°C
Protection class: IP21
WiFi: 2.4 GHz
App: iOS & Android
Voice assistant: Google Assistant, Amazon Alexa (Siri Shortcuts via app)
Programmable: up to 3 periods per day
Wooden floor: temperature limit < 28°C
Open window detection: yes
Slow start: yes

Key features

• Full colour touchscreen (2.75 inches)
• Smart self-learning control algorithms
• OTA (Over-The-Air) firmware updates
• ECO mode with presence sensor
• Magnetic mounting with smart pin connector
• Night screen / blackout option
• Automatic start-up menu
• Back-up function
• Automatic summer/winter time
• Multilingual app programming

Suitable switchgear

• Busch-Jaeger Balance SI 1721-914
• Busch-Jaeger Future Linear
• Gira Event
• Gira E2
• Gira Standard 55
• Hager Berker S.1
• Jung A500
• Jung AC581
• Jung LS990 (with LS961Z5WW intermediate frame)
• Jung CD500 (with CD561Z5WW intermediate frame)

Package content

• Thermostat
• Installation instructions
• User manual
• Floor sensor (12K)

Warranty
2 year guarantee on electrical operation and the floor sensor.

Technical specifications

• Model name: MAGNUM Remote Control 2 (MRC2)
• Type: Smart WiFi thermostat with full touchscreen
• Sensors: Built-in room sensor + floor sensor (12K)
• Voltage / Frequency: 230V – 50/60Hz
• Maximum switching load: 16A / 230V
• Operating temperature range: +5 °C to +40 °C
• Floor temperature limit for wooden floors: < 28 °C
• Connectivity: WiFi 2.4GHz, iOS & Android app, Google Assistant & Amazon Alexa compatibility
• Programmability: up to 3 periods per day; self-learning start times
• Protection class / Housing: IP21
• OTA firmware updates supported
• Included in kit: thermostat, floor sensor, manual, installation instructions
• Warranty: 2 years (electrical operation and floor sensor)
