Floor heating mat MAT

Product overview

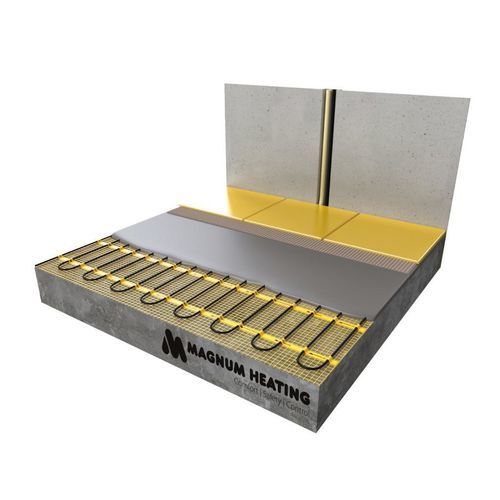

The MAGNUM Mat is an electric underfloor heating mat designed for direct installation over existing tiles or on top of an installed screed without demolition or milling. The mat assembly is approximately 4 mm thick and can be embedded in tile adhesive or self-levelling screed. The heating cable is connected at one end only, providing a single-sided power connection and a blind joint between heating element and power lead.

Easy installation

• Directly into tile adhesive
• Self-levelling casting mortars
• In plaster or mortar
• On anhydrite floors

Note
MAGNUM Mat is not suitable for use in lightweight concrete.

Product variants (table)
Art.nr. white | Art.nr. black | Description | m² | Power | W per m² | Amps | Ohm | Dimension
200075 | 210075 | MAGNUM Mat Set | 0,75 m² | 113 Watt | 150 Watt | 0,6 | 468 | 0,25 x 3,00 m
200205 | 210205 | MAGNUM Mat Set | 1,0 m² | 150 Watt | 150 Watt | 0,7 | 353 | 0,50 x 2,00 m
200125 | 210125 | MAGNUM Mat Set | 1,25 m² | 188 Watt | 150 Watt | 0,8 | 281 | 0,25 x 5,00 m
200305 | 210305 | MAGNUM Mat Set | 1,5 m² | 225 Watt | 150 Watt | 1,0 | 235 | 0,50 x 3,00 m
200175 | 210175 | MAGNUM Mat Set | 1,75 m² | 263 Watt | 150 Watt | 1,1 | 201 | 0,25 x 7,00 m
200405 | 210405 | MAGNUM Mat Set | 2,0 m² | 300 Watt | 150 Watt | 1,3 | 176 | 0,50 x 4,00 m
200225 | 210225 | MAGNUM Mat Set | 2,25 m² | 338 Watt | 150 Watt | 1,5 | 157 | 0,25 x 9,00 m
200505 | 210505 | MAGNUM Mat Set | 2,5 m² | 375 Watt | 150 Watt | 1,6 | 141 | 0,50 x 5,00 m
200605 | 210605 | MAGNUM Mat Set | 3,0 m² | 450 Watt | 150 Watt | 2,0 | 117 | 0,50 x 6,00 m
200705 | 210705 | MAGNUM Mat Set | 3,5 m² | 525 Watt | 150 Watt | 2,3 | 100 | 0,50 x 7,00 m
200805 | 210805 | MAGNUM Mat Set | 4,0 m² | 600 Watt | 150 Watt | 2,6 | 88 | 0,50 x 8,00 m
200905 | 210905 | MAGNUM Mat Set | 4,5 m² | 675 Watt | 150 Watt | 2,9 | 78 | 0,50 x 9,00 m
201005 | 211005 | MAGNUM Mat Set | 5,0 m² | 750 Watt | 150 Watt | 3,3 | 71 | 0,50 x 10,00 m
201205 | 211205 | MAGNUM Mat Set | 6,0 m² | 900 Watt | 150 Watt | 3,9 | 59 | 0,50 x 12,00 m
201405 | 211405 | MAGNUM Mat Set | 7,0 m² | 1050 Watt | 150 Watt | 4,6 | 50 | 0,50 x 14,00 m
201605 | 211605 | MAGNUM Mat Set | 8,0 m² | 1200 Watt | 150 Watt | 5,2 | 44 | 0,50 x 16,00 m
201805 | 211805 | MAGNUM Mat Set | 9,0 m² | 1350 Watt | 150 Watt | 5,9 | 39 | 0,50 x 18,00 m
202005 | 212005 | MAGNUM Mat Set | 10,0 m² | 1500 Watt | 150 Watt | 6,5 | 35 | 0,50 x 20,00 m
202405 | 212405 | MAGNUM Mat Set | 12,0 m² | 1500 Watt | 125 Watt | 6,5 | 35 | 0,50 x 24,00 m
203005 | 213005 | MAGNUM Mat Set | 15,0 m² | 1875 Watt | 125 Watt | 8,2 | 28 | 0,50 x 30,00 m
204010 | 214010 | MAGNUM Mat Set | 20,0 m² | 2500 Watt | 125 Watt | 10,8 | 21 | 0,50 x 40,00 m
205010 | 215010 | MAGNUM Mat Set | 25,0 m² | 3125 Watt | 125 Watt | 13,6 | 17 | 0,50 x 50,00 m

Technical details

• EMC-free 2-conductor heating cable embedded in fiberglass mat
• 3.5 meter three-wire power cable (approx.)
• Full enclosure by aluminium sheath with grounding
• Unique blind connection between heating cable and connection cable
• Chrome/Nickel resistance wire
• PTFE (Teflon) insulation
• PVC protective sheath
• Cable diameter approx. 4 mm
• Mat widths: 25 or 50 cm
• Meets current NEN standards for installation in wet areas

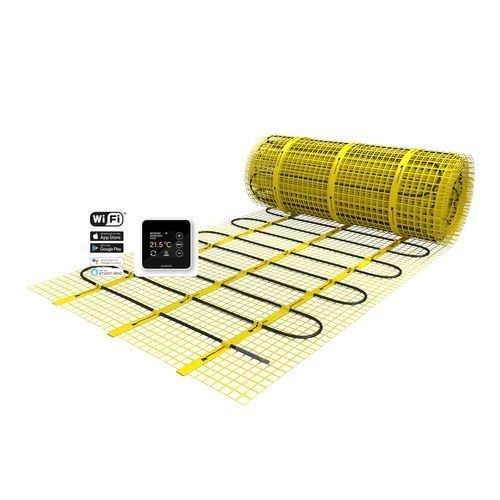

Package contents

• Heating mat
• MAGNUM Remote Control WiFi thermostat including floor sensor
• Flexible tube for floor sensor
• Installation instructions & Check/Control card

Warranty
Lifetime* warranty on the electrical operation of the heating mat and 2 years on the thermostat and floor sensor.

Characteristics / technical specifications

• System type: Electric
• System height: 4 mm
• System width: 25 or 50 cm
• Min. setting height: 10 mm
• Installation: Self-levelling / Tile adhesive
• Power: 125 or 150 W/m²
• Suitable in wet areas: Yes
• Suitable for tiles: Yes
• Suitable for wood (with self-levelling): Yes
• Suitable for (PVC) laminate (with self-levelling): Yes
• Suitable for carpet (with self-levelling): Yes
• Certification: CE, VDE
• Warranty: Lifetime* (electrical operation of mat) and 2 years on thermostat and floor sensor
