Electric underfloor heating HEATBOARD E

residentialcommercialwith acoustic insulation

Overview
Wood, parquet and laminate floors are increasingly used in residential and commercial interiors. MAGNUM HeatBoard is a thin dry electric underfloor heating panel designed for direct installation under floating hard floors (wood, parquet, laminate). Available in 12 mm standard height or 32 mm option. The system is controlled via a digital WiFi thermostat with floor sensor (thermostat sold separately). Insulation panels add thermal resistance and reduce airborne impact noise. Approximately 9 m of HeatBoard Cable is required per unobstructed 1 m2 area.

Product details
Intended for dry, floating hard floor systems: laminate, wood and parquet. For carpeted finishes use DuoBoard between the heating system and the carpet. Not suitable for permanently wet installations.

Installation methods

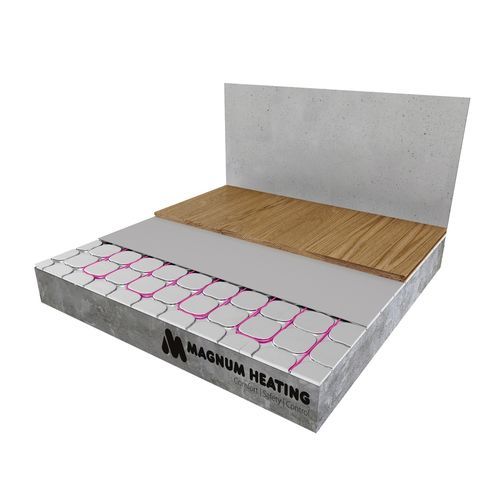

High-density EPS foam panels are bonded to preformed aluminium plates in a patented process to ensure full contact across the floor surface and optimise heat transfer, including around curves. The system accommodates a 7 mm MAGNUM HeatBoard Cable; the plate design channels heat from the cable to the floor surface.

Dimensions and set
Board size: 788 x 594 mm (effective: 778 x 589 mm). Supplied in sets of 11 plates (covers 5 m2 per set). System heights: 12 mm (standard) or 32 mm (option). Minimum construction height: 20 mm.

Cable options (60 Watt/m2)
Art.nr. | Description | Cable length | Power
136018 | MAGNUM HeatBoard Cable 6 | 30 m | 180 Watt
136030 | MAGNUM HeatBoard Cable 6 | 50 m | 300 Watt
136048 | MAGNUM HeatBoard Cable 6 | 80 m | 480 Watt
136060 | MAGNUM HeatBoard Cable 6 | 100 m | 600 Watt
136072 | MAGNUM HeatBoard Cable 6 | 120 m | 720 Watt
136090 | MAGNUM HeatBoard Cable 6 | 150 m | 900 Watt
136140 | MAGNUM HeatBoard Cable 6 | 190 m | 1140 Watt

Cable options (100 Watt/m2)
Art.nr. | Description | Cable length | Power
131030 | MAGNUM HeatBoard Cable 10 | 30 m | 300 Watt
131050 | MAGNUM HeatBoard Cable 10 | 50 m | 500 Watt
131080 | MAGNUM HeatBoard Cable 10 | 80 m | 800 Watt
131100 | MAGNUM HeatBoard Cable 10 | 100 m | 1000 Watt
131120 | MAGNUM HeatBoard Cable 10 | 120 m | 1200 Watt
131150 | MAGNUM HeatBoard Cable 10 | 150 m | 1500 Watt
131190 | MAGNUM HeatBoard Cable 10 | 190 m | 1900 Watt

Board sets / products
Art.nr. | Description | m2 | Dimensions | Unit
430010 | MAGNUM HeatBoard 12 mm | 5 m2 | 78 x 58 cm | 11 plates
430015 | MAGNUM HeatBoard 32 mm | 5 m2 | 78 x 58 cm | 11 plates

Cable package contents

• HeatBoard E Cable
• Mounting tape
• Flexible tube for floor sensor
• Installation instructions
• Profile for end loop

Notes
HeatBoard Cable, thermostat and DuoBoard are ordered separately. The advanced WiFi thermostat calculates required warm-up time to reach the target floor temperature. Floor temperature limiting is possible with the floor sensor and thermostat.

Technical specifications

• System type: Electric
• System height: 12 mm / 32 mm
• System width: 594 mm
• System length: 778 mm
• Minimum construction height: 20 mm
• Installation: Floating
• Power output: 60 or 100 W/m2
• Suitable for wet areas: No
• Tiles: Suitable
• Wood: Suitable
• Laminate: Suitable
• Carpet: Suitable (with DuoBoard)
• Certification: CE, VDE
• Warranty: 2 years (product), 10 years on electrical function of the Cable
