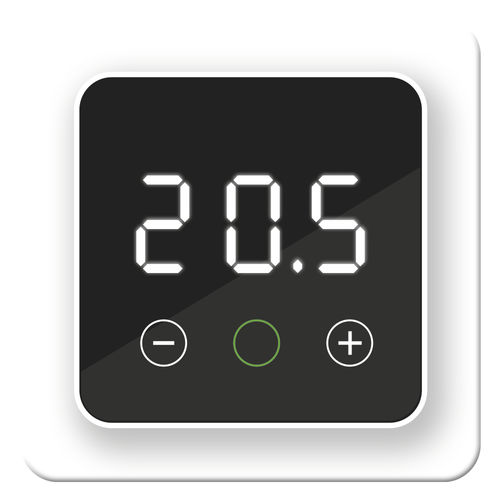

Digital thermostat F32

programmablesmartfor heating

Description

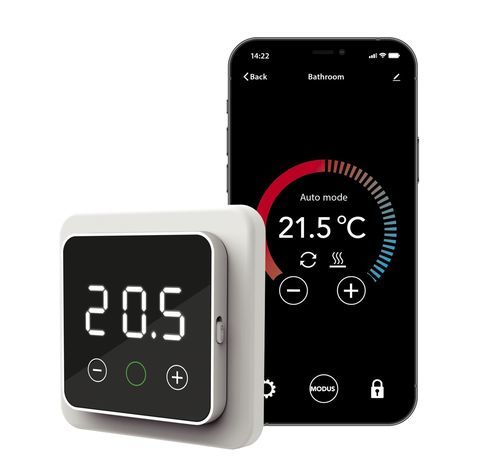

Elegant F32 WiFi thermostat designed to control underfloor heating systems. Programmable and controllable remotely via a mobile app for iOS and Android. The app allows scheduling, adjusting settings for different rooms and adding additional thermostats.
In addition to WiFi connectivity, the thermostat can operate as a standalone unit, allowing direct selection of temperature and operating mode. User-friendly and well suited for hotels and holiday homes to prevent unauthorized changes to settings.
Features open-window detection: if temperature drops sharply the thermostat disables output to avoid extra energy consumption. Includes a Pilot output for integration with universal home automation systems.

Models / references
Art.no. — Description
825880 — MAGNUM F32 WIFI Control thermostat (White RAL9010) with floor sensor
825881 — MAGNUM F32 WIFI Control thermostat (Black RAL9011) with floor sensor

Key features (summary)
Type — Smart WiFi thermostat
Suitable for — Electric and hydronic systems
Interface — Touchscreen display
Sensors — Room sensor and floor sensor
Voltage — 230V – 50/60Hz
Max load — 16A / 230V
Temperature range — +5°C / +40°C
Protection — IP21

Main functions

• WiFi 2.4 GHz
• Mobile app for iOS and Android
• Voice assistant compatibility: Google Assistant and Amazon Alexa
• Programmable: up to 3 periods per day
• Open-window detection (sudden temperature drop)
• Soft start
• Pilot output for home automation integration
• Suitable for wooden floors with 28°C limit
• Color LCD and touchscreen

Package contents
– F32 WiFi thermostat
– 12K floor sensor
– User manual

Compatible frames and series
Busch-Jaeger Valance SI 1721-914
Busch-Jaeger Future Linear
Gira Event
Gira E2
Gira Standard 55
Hager Berker S.1
Jung A500
Jung AC 581
Jung LS990 including intermediate frame LS961Z5WW
Jung CD500 including intermediate frame CD561Z5WW

Warranty
2-year warranty covering electrical operation and the floor sensor.

Technical specifications

• Temperature range: +5°C / +40°C
• Max power: 16A – 3600 W
• Certifications: CE
• WiFi thermostat with color LCD
• Touchscreen
• Free app for iOS and Android
• Operates with Google Assistant and Amazon Alexa
• Night clock screensaver
• Auto-start menu
• Adaptive intelligence
• Soft start function
• Suitable for parquet (limit 28°C)
• Memory log function
• Automatic summer/winter time
• Multi-program function (3 periods/day)
• Multilingual programming in the app
