Electric underfloor heating 442001

residentialfor domestic usefor concrete floors

Overview

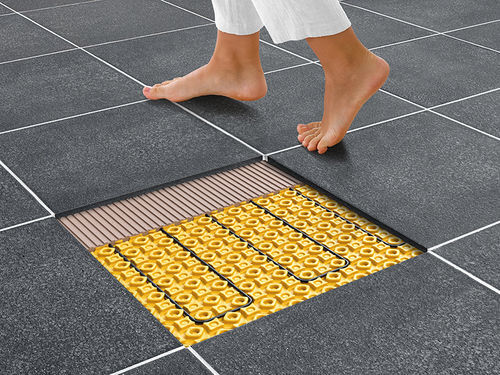

The MAGNUM decoupling concept combines a thin decoupling membrane (MDM) with an electric heating cable (MDC) to deliver precise, evenly distributed floor heating while isolating the floor finish from substrate movement. The system protects finished floors from moisture and prevents substrate cracks from transmitting to the tile layer. Its low total height makes it suitable for both new builds and renovation projects where build-up is limited.

Complete sets

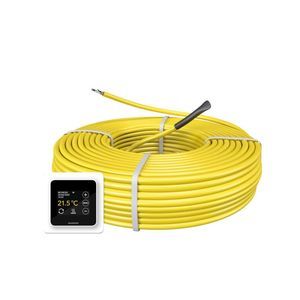

Delivered as kits covering 1.5 to 7.5 m² with an MRC2 Wi‑Fi thermostat (white or black) for fast installation, or as individual components for custom areas.

Complete set table (Art.nr. with MRC2 white | Art.nr. with MRC2 black | Set | Plates | MDC Power | Heated @150W | Heated @113W)
442150 | 443150 | 1.5 m² | 2 plates | 150 W | 1.0 m² | 1.3 m²
442225 | 443225 | 2.25 m² | 3 plates | 225 W | 1.5 m² | 2.0 m²
442300 | 443300 | 3 m² | 4 plates | 300 W | 2.0 m² | 2.6 m²
442375 | 443375 | 3.75 m² | 5 plates | 375 W | 2.5 m² | 3.3 m²
442450 | 443450 | 4.5 m² | 6 plates | 450 W | 3.0 m² | 4.0 m²
442525 | 443525 | 5.25 m² | 7 plates | 525 W | 3.5 m² | 4.6 m²
442600 | 443600 | 6 m² | 8 plates | 600 W | 4.0 m² | 5.3 m²
442675 | 443675 | 6.75 m² | 9 plates | 675 W | 4.5 m² | 6.0 m²
442750 | 443750 | 7.5 m² | 10 plates | 750 W | 5.0 m² | 6.6 m²

As individual components
MAGNUM Decoupling Membrane (MDM)
442001 | MDM 3 m² – 4 plates 100 x 75 cm
442000 | MDM 5 m² – Roll 100 x 500 cm

MAGNUM Decoupling Cable (MDC) — (Art.nr. | Power | Heated @150W/m² | Heated @113W/m²)
110150 | 150 W | 1 m² | 1.3 m²
110225 | 225 W | 1.5 m² | 2 m²
110300 | 300 W | 2 m² | 2.6 m²
110375 | 375 W | 2.5 m² | 3.3 m²
110450 | 450 W | 3 m² | 4 m²
110525 | 525 W | 3.5 m² | 4.6 m²
110600 | 600 W | 4 m² | 5.3 m²
110675 | 675 W | 4.5 m² | 6 m²
110750 | 750 W | 5 m² | 6.6 m²
110900 | 900 W | 6 m² | 9 m²
111050 | 1050 W | 7 m² | 9.2 m²
111200 | 1200 W | 8 m² | 10.6 m²
111500 | 1500 W | 10 m² | 13.2 m²
111800 | 1800 W | 12 m² | 15.9 m²
112250 | 2250 W | 15 m² | 19.9 m²

Easy installation

• The MAGNUM Decoupling Cable (MDC) is clipped into the membrane channels and immediately embedded with tile adhesive or leveling mortar for efficient heat transfer.
• Decoupling mats suit solid, level wooden and concrete substrates and reduce risk of tile damage from structural movement or minor substrate irregularities.

Variable power output
The system supports variable output depending on cable spacing (typical range 150 W/m² down to 113 W/m²), allowing specification of heat density per room to meet thermal requirements and improve energy performance.

Specifications (summary)
System type | Electric
System height | 5.5 mm
Membrane plate | 1000 x 750 mm
Membrane roll | 5000 x 1000 mm
Installation | Self‑levelling / Tile adhesive
Power | selectable 125 or 150 W/m² (variable by spacing)
Suitable for wet areas | Yes
Compatible floor coverings | Tiles; Wood (with self‑levelling); PVC laminate (with self‑levelling); Carpet (with self‑levelling)
Certification | CE
Warranty | 10 years (heating cable electrical performance)

Technical details (key items)

• Power supply: 230 V, 50 Hz
• Linear power consumption: 11.3 W/m
• Heating conductor: Solid conductor (both elements)
• Insulation: FEP, thickness 0.30 mm (nom.)
• Earth wire: Multi‑core, tinned copper with gold‑plated terminals
• Outer sheath: High‑temperature PVC (105 °C)
• Cable diameter: 4.5 mm (max.)

Characteristics / technical specifications

• System type: Electric
• System height: 5.5 mm
• Membrane plate: 1000 x 750 mm
• Membrane roll: 5000 x 1000 mm
• Installation: Self‑levelling or tile adhesive
• Power: selectable 125 or 150 W/m² (variable depending on spacing)
• Suitable for wet areas: Yes
• Floor finishes: Tiles; Wood, PVC laminate, Carpet (when used with self‑levelling)
• Power supply: 230 V, 50 Hz
• Linear power consumption: 11.3 W/m
• Heating conductor: Solid conductor
• Insulation: FEP (0.30 mm nominal)
• Earth wire: Multi‑core tinned copper
• Outer sheath: High‑temperature PVC (105 °C)
• Cable diameter (max): 4.5 mm
• Certification: CE
• Warranty: 10 years on cable electrical performance; 2 years on thermostat and floor sensor
