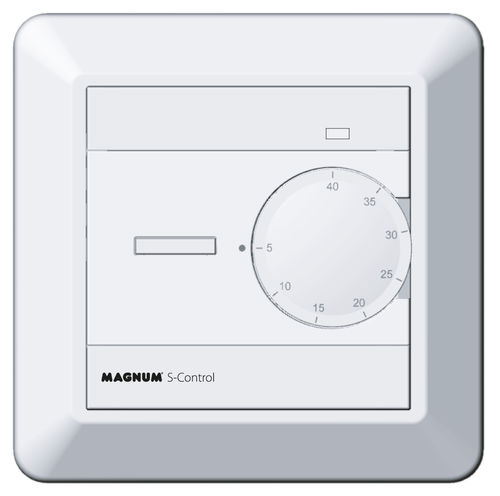

Electronic thermostat S-CONTROL

manualroomfor heating

Overview
In installations where a digital interface is unnecessary, a simple on/off control is often preferred — for industrial sites or continuous heating applications. MAGNUM S-Control (Standard Control) is an on/off thermostat with temperature regulation designed for straightforward operation and installation.

Product type
Thermostat (On/off)

Product variants
Art.nr. | Description | Color code
827000 | MAGNUM Standard Control On/Off Thermostat | Polar white – RAL 9010

Specifications
Type: On/off thermostat
Suitable for: Electrical heating systems
Controls: Physical buttons
Sensors: Room and floor sensor (12K)
Voltage: 230V – 50/60Hz
Maximum load: 16A / 230V
Temperature range: +5 / +40°C
Housing: IP21

Technical details

• Voltage 230 Volt – 50/60 Hz
• Max. load 16A / 230 V
• Temperature range +5 / +40°C
• Housing IP21
• Color Polar white (RAL 9010)
• Certification CE
• On/off thermostat with temperature control
• Includes floor sensor (12K)
• Built-in room sensor and floor limit sensor
• Multi-frame adapter system compatible with: Gira, Jung, Elko, Merten, Busch Jager etc.

Installation method
Suitable for electric heating systems.

Package content

• Thermostat
• Installation instructions
• Floor sensor (12K)
• Two frames

Warranty
2 year guarantee on the electrical operation and floor sensor.

Technical specifications

• Type: On/off thermostat
• Voltage: 230V – 50/60Hz
• Maximum load: 16A / 230V
• Temperature range: +5 / +40°C
• Sensors: Room and floor sensor (12K)
• Housing protection: IP21
• Color: Polar white (RAL 9010)
