Floor heating mat FOIL

Overview
MAGNUM Foil is an ultra-thin electric underfloor heating foil (0.3 mm) designed for dry-installation directly under wood, parquet or laminate flooring. The system is controlled by a WiFi programmable thermostat with floor sensor to maintain even floor temperatures and can be limited to a maximum floor temperature via sensor and thermostat.

Key features

• Dry-installation solution compatible with wood, parquet, laminate (not PVC) and carpet.
• Ultra-thin system height: 0.3 mm; minimum installation height: 1 cm.
• Standard output: 120 W/m² (foil width 600 mm).
• Advanced WiFi thermostat with scheduling and adaptive warm-up control.
• Easy to cut to size on-site.

Installation method

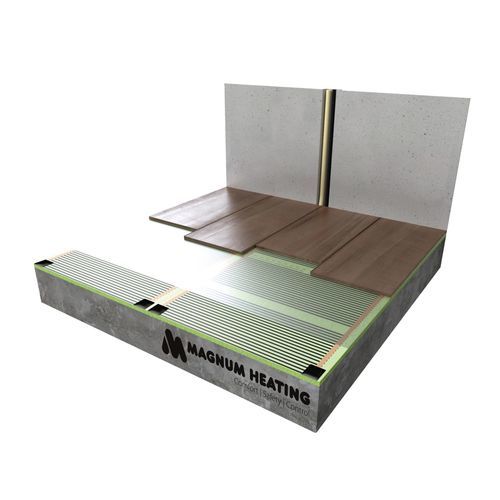

MAGNUM Foil operates at 230 V and must be installed by a qualified electrician. The foil should be laid on MAGNUM Isofoam polystyrene insulation plates (6 mm) and covered with a vapour barrier foil (0.1 mm). Ensure the floor sensor is placed according to installation instructions and connected to the thermostat.

Product variants (Art.nr. / Description / Dimensions / Power)
Art.nr. white | Art.nr. black | Description | Dimensions | Power
361005 | 371005 | MAGNUM Foil Set 5 m² * | 0.6 x 8.4 m | 600 Watt
361010 | 371010 | MAGNUM Foil Set 10 m² * | 0.6 x 16.8 m | 1200 Watt
361015 | 371015 | MAGNUM Foil Set 15 m² * | 0.6 x 25 m | 1800 Watt
361110 | | MAGNUM Foil add-on set 10 m² ** | 0.6 x 16.8 m | 1200 Watt

Foil loose / Roll
Art.nr. | Description | Dimensions | Power m²
360120 | MAGNUM Foil loose per m² on roll | 0.6 x ? m | 120 Watt

Options
Art.nr. | Options | Dimensions
720807 | MAGNUM Vapour barrier film 12 m² | 4 x 3 m x 0.1 mm
720810 | MAGNUM Foil pressure divider and crimping pliers |
720815 | MAGNUM Foil connection set for 10 m² foil |
730300 | MAGNUM Isofoam PS Insulation 6 m² | 10 to 120 x 50 x 0.6 cm

Package content (set)

• Foil roll (5, 10 or 15 m² at 120 W/m²)
• MAGNUM WiFi remote thermostat (White or Black) with floor sensor
• Flexible sensor tube
• Vulcanised insulating tape and PP tape
• Connection clamps
• Connection wires (2 x 15 m black/blue for sets)
• Pressure distribution and crimping pliers
• Installation instructions

To be ordered separately (depending on number of m²)

• MAGNUM Isofoam PS insulation plates (pack 6 m²)
• Vapour barrier foil 0.1 mm

Notes
Set includes: MAGNUM Foil 120 W/m², MAGNUM WiFi thermostat with floor sensor, flexible sensor tube, 2 x 15 m connection wires (black/blue), required crimp connectors, pressure distribution and crimping pliers, vulcanised insulation tape, PP tape, installation instructions.
Add-on set contains: 2 x 15 m connection wires (black/blue), crimp connectors, vulcanised insulation tape, PP tape, foil 10 m².

Technical specifications

• System type: Electric
• System height: 0.3 mm
• System width: 600 mm
• Min. setting height: 1 cm
• Installation: Dry construction
• Power: 120 W/m²
• Suitable for wet areas: No (intended for dry installation under compatible coverings)
• Tiles: Yes
• Wood: Yes
• Laminate: Yes (no PVC)
• Carpet: Yes
• Certifications: CE, SEMKO
• Thermostat colours: Polar white, Graphite black
• Warranty: 10 years on electrical function of MAGNUM Foil; 2 years on thermostat and floor sensor
