Thermal insulation ISOFOAM PS

acousticpanelfoam

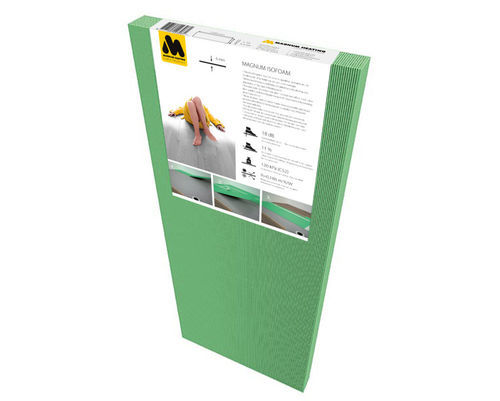

MAGNUM IsoFoam is a 6 mm thin floor insulation manufactured from fully recycled materials. The structure of the Isofoam consists of small closed cells that have an excellent insulating effect. This special structure ensures that it does not conduct heat to the bottom, so that all the heat generated by MAGNUM Foil is directed towards the floor surface.
Advantages

• Lightweight
• Optimal impact sound reduction
• Excellent thermal insulation
• Levels minor floor irregularities
• Easy to cut and install
• Only 6 mm thickness
• Compatible with MAGNUM heating foils

Characteristics
Thickness: 6 mm
Density: 28 kg/m3
Thermal resistance: 0.19 m2K/W
Thermal conductivity: 0.029 – 0.034 W/(mK)
Water absorption after 24 h: ≤ 1 %
Water absorption after 24 days: ≤ 2 %
Compressive load: ≥ 10 kPa (PN-EN ISO 826:2013)
Dynamic load resistance: ≥ 2 kPa
Impact sound reduction: 18 dB (ISO 10140)
Walking noise reduction: 9 % (standard 16205)
Warranty: 2 years

Thermal properties

• Water resistance: 0.06 %
• Operating temperature range: -30 to +70 °C
• Noise insulation over floor: 5.6 dB
• Subfloor: 21 dB
• Practical compressive strength: 6 t/m2
• Thermal conductivity value: 0.0279 W/mK

Technical specifications

• Product model: Isofoam MAGNUM PS
• Thickness: 6 mm
• Density: 28 kg/m3
• Thermal resistance (R): 0.19 m2K/W
• Thermal conductivity (λ): 0.029 – 0.034 W/(mK)
• Added thermal insulation value: 0.0279 W/mK
• Water absorption 24 h: ≤ 1 %
• Water absorption 24 days: ≤ 2 %
• Water resistance: 0.06 %
• Service temperature range: -30 °C to +70 °C
• Compressive load: ≥ 10 kPa (per PN-EN ISO 826:2013)
• Dynamic load resistance: ≥ 2 kPa
• Practical compressive strength: 6 t/m2
• Impact sound reduction: 18 dB (ISO 10140)
• Walking noise reduction: 9 % (standard 16205)
• Presentation: 6 m² per reference (10 boards 120 x 50 cm)
• Warranty: 2 years
