Digital thermostat FHMX-N

programmablesmartmanual

Description

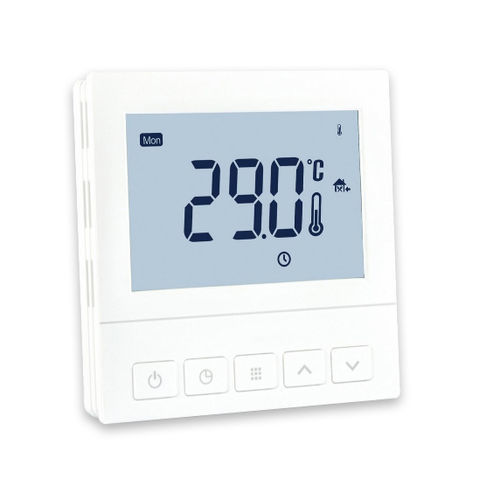

Programmable digital thermostat designed for electric underfloor heating systems. Flat surface-mounted unit with a clear backlit digital display that controls both ambient and floor temperatures. Compatible with FHMX-N and MAGNUM electric underfloor systems. Includes 3 m floor sensor; connection up to 3600 W. CE marked. 2-year warranty.

Main features

• Surface-mounted flat thermostat
• Suitable for electric underfloor heating systems
• Easy to operate and install
• Backlit digital display
• Weekly / daily programming
• Manual and automatic control modes
• Open-window detection function
• Frost protection function
• Smart mode
• Controls ambient and floor temperature
• White finish
• 12/24-hour clock
• °F or °C option
• Accuracy ±1°C
• Equipped with 3 m floor probe
• Maximum connection up to 3600 W
• CE marked
• 2-year warranty

Reference
Art.nr. | Description
838104 | Programmable digital thermostat with floor sensor

Characteristics / Technical specifications

• Power supply: 230V - 50/60 Hz
• Load current: Maximum 16A
• Ambient temperature adjustment range: 5 - 35 °C
• Floor temperature adjustment range: 5 - 70 °C
• Color: Polar White RAL9010
• Accuracy: ±1 °C
• Marking: CE
• Dimensions: 86 x 86 x 13 mm
• Warranty: 2 years
