Mist-free heating film LOOK

for mirror

MAGNUM Look mirror heating always provides a clear view when shaving, cutting hair and applying make-up. No more wiping with a towel to see yourself in the mirror after showering or using hot water.
MAGNUM Look is connected and easily switched through the light switch and prevents condensation in no time. It also prevents the unpleasant towel marks that remain after removing condensation. Connecting directly to the mains, through the light switch in the bathroom, avoids unnecessary waste of energy.

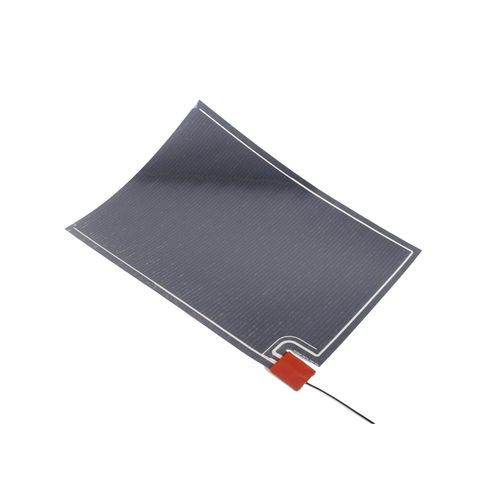

MAGNUM Look mirror heating is a self-adhesive heating foil element that can be applied directly to the back of the mirror. The elements are double insulated and can therefore also be used in humid rooms. The capacity achieves a fast heating-up time of approx. 5 to 8 minutes. In that short time, the mirror is already brought to a temperature of approx. 40°C and condensation is prevented. The maximum achievable mirror temperature is limited to approx. 50°C. This makes the product absolutely safe to touch.

Installation methods
The mirror must be intact (no broken edges or hand-cut mirrors) to avoid cracking from thermal stress. Remove protective liner and press the self-adhesive foil onto the clean, dry back surface of the mirror. Connect to the mains through the bathroom light circuit following local electrical regulations.

Attention / warnings
The adhesive backing has very high bonding strength and is permanent. Ensure correct positioning before final application. Do not use with dimmers. Observe local electrical installation rules.


Specifications

• System type: Electric
• System height / thickness: 1 mm
• System width: Various sizes (see models)
• Installation: Self-adhesive element applied to mirror back (permanent)
• Power: 50–150 Watt depending on model
• Suitable for wet areas: Yes (double insulated, Class II)
• Type of heating: Infrared
• Control: Light switch (no dimmer)
• Certification: CE, Kema Keur, FIMKO
• Protection rating: IP-34
• Warranty: 2 years on electrical function

Technical details / Package content

• Heating foil with self-adhesive backing
• Approximately 1 metre connection cable
• Installation instructions

Warranty
2 year warranty on the electrical function.
