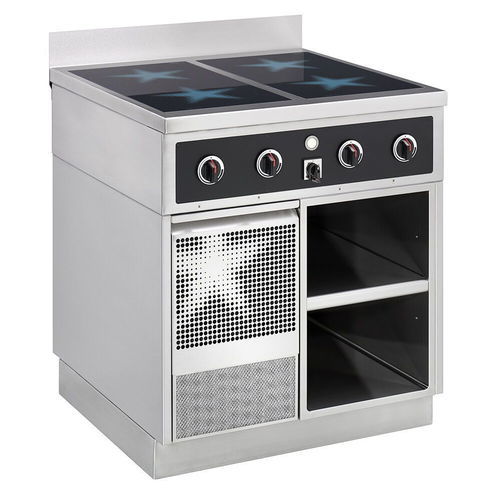

Induction cooktop 203897

for commercial kitchen4 burnercountertop

Overview
Induction hobs generate heat exactly where you need it – directly in the pan. An electromagnetic field enables heat to be generated directly in the base of the pan at maximum speed. No power is consumed and no heat emitted if the hob is switched on but no pan is on it.

Benefits

• Patented SLIDECONTROL technology
• Pan type detection (material, size, power consumption properties)
• Control electronics with the latest processor technology
• Self-diagnosis system for error detection and signalling
• Digital, bright multi-segment information display
• Intuitive cooking power regulation
• Optimum adaptation of induction to the type of pan
• Fast, freely adjustable control
• For optimum operational reliability
• Stay informed about the status at any time

Downloads

• Free-standing brochure — PDF, 2,51MB
• Individual data sheets available for each hob model (PDF data sheets for Power, Multifunctional and Full-coverage hob variants)

Products and key specifications

• Power hob — MS-I-10P
  Induction appliance with Power hob 6.0 kW with patented SlideControl technology. Power brought straight to the point. Designed for cooking with just one pan; ideal for flash frying and cooking large quantities.
  Ideal for pans up to 32 cm
  Range: 300 mm
  Central pot detection and temperature monitoring
• Multifunctional hob — MS-I-10M
  Induction appliance with multifunctional hob 7.0 kW. Versatile and flexible; ideal for cooking with two to four pans. Capacity and high power density of the coil make it suitable for production and finishing.
  For four 16 cm sauté pans or one saucepan up to 38 cm
  Range: 340 × 360 mm
  2-zone pot detection and temperature monitoring
  Height-adjustable
• Full-coverage large hob — MS-I-10G
  Induction appliance with full-coverage large hob 9.0 kW. Maximum pan capacity with optimum power distribution and highly precise energy metering.
  For four 20 cm sauté pans or one saucepan up to 40 cm
  Range: 380 × 380 mm
  Full-coverage pot detection and temperature monitoring
• Power hob — MS-I-20P
  Induction appliance with 2 Power hobs and SlideControl technology. Suitable for pans up to 32 cm; Range 300 mm each; Central pot detection and temperature monitoring
• Multifunctional hob — MS-I-20M
  Induction appliance with 2 multifunctional hobs 2 × 7.0 kW. For four 16 cm sauté pans or saucepan up to 38 cm; Range 340 × 360 mm; 2-zone pot detection and temperature monitoring; Height-adjustable
• Power hob — MS-I-40P
  Induction appliance with 2×2 Power hobs and SlideControl technology. Suitable for pans up to 32 cm; Range 300 mm each; Central pot detection and temperature monitoring
• Multifunctional hob — MS-I-40M
  Induction appliance with 2×2 multifunctional hobs 4 × 7.0 kW. For four 16 cm sauté pans or saucepan up to 38 cm; Range 340 × 360 mm each; 2-zone pot detection and temperature monitoring; Height-adjustable
• Compact Worker with 4 power hobs — Compact Worker P
  Compact cooking suite with 2×2 Power hobs and SlideControl technology. Suitable for pans up to 32 cm; Range 300 mm each; Central temperature monitoring; Main switch with pilot light
• Compact Worker with 4 multifunctional hobs — Compact Worker M
  Compact cooking suite with 2×2 multifunctional hobs 4 × 7.0 kW. For use with four 16 cm sauté pans or saucepan up to 38 cm; Range 340 × 360 mm; 2-zone pot detection and temperature monitoring; Main switch with pilot light

caractéristiques / spécifications techniques

• Control: 1–4 control units depending on model
• Outputs per model: 6.0 kW, 7.0 kW or combinations (e.g. 4 × 6.0 kW, 4 × 7.0 kW)
• Dimensions (examples): MS-I-10 series: 400 × 400 × 200 mm; MS-I-20 series: 700 × 400 × 200 mm; MS-I-40 series: 800 × 800 × 200 mm; Compact Worker: 800 × 800 × 900 mm
• Connector: 3×400–440 VAC, 50/60 Hz (specific CEE connector types vary by model: CEE 16, Type 15, Type 25, CEE 32)
• Adjustment: Freely adjustable power control
• Monitoring: Central, 2-zone or full-coverage temperature monitoring depending on model
• Hobs: available as Power round coils, multifunctional coils or full-coverage configurations; ranges from 300 mm up to 380 × 380 mm depending on model
• Height-adjustable: Yes for selected models
• Weights (examples): 18 kg (single units), 32 kg (double units), 66 kg (quad units), 150 kg (Compact Worker P/M)
• Additional features: Patented SLIDECONTROL, pan type detection (material, size, power consumption properties), latest processor control electronics, self-diagnosis, bright multi-segment display
