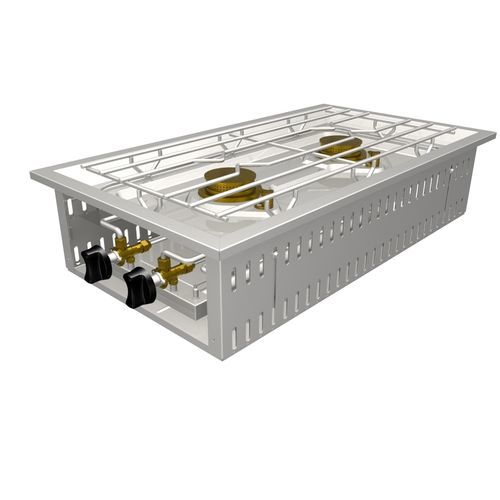

Gas cooktop 206359

for commercial kitchentwo-burnerbuilt-in

Product overview
PREMIUM gas hob designed for professional kitchens. Cover and housing in stainless steel with embossed, seamlessly deep-drawn and tightly welded double burner recess. Large radii facilitate cleaning. Latest-generation burner technology, DVGW tested. Brass burners with a double alternating flame circle Ø 100 mm ensure uniform heat distribution across the entire base of pots and pans. One-piece 1.4301 stainless steel sliding grate made from 8 mm round steel permits stable movement of cookware and prevents tipping; suitable for cookware from Ø 70 mm. Manual burner ignition with pilot burner. Gas tap with thermoelectric protection.

Benefits

• Welded stainless steel tray - extremely easy and fast to clean
• Reinforced stainless steel grate - no grid warping
• Removable flame distributor - simplified cleaning and consistent flames

Variants

• Double gas hob length side operated
  Same stainless steel cover and housing with embossed, deep-drawn and tightly welded double burner recess. Large radii for easier cleaning. Latest-generation burner technology, DVGW tested. Brass burners Ø 100 mm with double alternating flame circle for even heat distribution. One-piece 1.4301 stainless steel sliding grate of 8 mm round steel. Manual ignition with pilot burner. Gas tap with thermoelectric protection.

  Specifications:
  Dimensions: 900 x 500 mm
  Output: 2 x 7.5 kW (2x D burners)
  Connector: for natural gas
  Heating zone: 2 heating zones
  Control: 2 controls
  Adjustment: Freely adjustable temperature control
  Item no.: 206360
• Double gas hob narrow side operated
  Same stainless steel cover and housing with embossed, deep-drawn and tightly welded double burner recess. Large radii for easier cleaning. Latest-generation burner technology, DVGW tested. Brass burners Ø 100 mm with double alternating flame circle for even heat distribution. One-piece 1.4301 stainless steel sliding grate of 8 mm round steel. Manual ignition with pilot burner. Gas tap with thermoelectric protection.

  Specifications:
  Dimensions: 500 x 900 mm
  Output: 2 x 7.5 kW (2x D burners)
  Connector: for natural gas
  Heating zone: 2 heating zones
  Control: 2 controls
  Adjustment: Freely adjustable temperature control
  Item no.: 206359

Technical specifications

• Cover and housing: stainless steel with embossed, deep-drawn and tightly welded double burner recess
• Burner technology: latest generation, DVGW tested; brass burners with double alternating flame circle Ø 100 mm for even heat distribution
• Grate: one-piece 1.4301 stainless steel sliding grate made of 8 mm round steel, suitable for cookware from Ø 70 mm
• Ignition: Manual burner ignition with pilot burner
• Safety: Gas tap with thermoelectric protection
• Adjustment: Freely adjustable temperature control
• Heating zones: 2 heating zones
• Outputs (both variants): 2 x 7.5 kW (2x D burners)
• Connector: for natural gas
• Dimensions (length side operated): 900 x 500 mm
• Dimensions (narrow side operated): 500 x 900 mm
• Item numbers: 206360 (length side operated), 206359 (narrow side operated)
