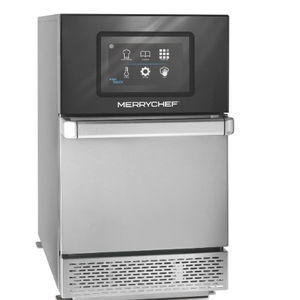

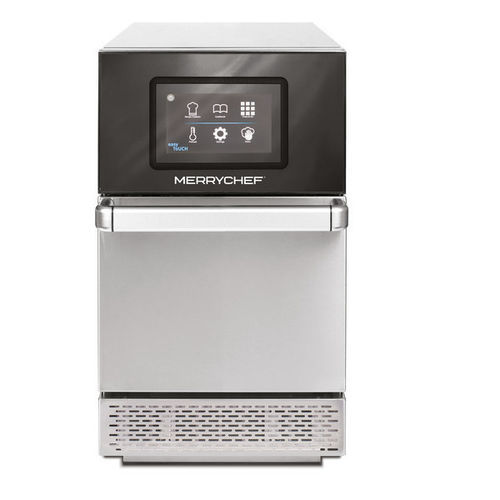

Commercial kitchen oven CONNEX®12

electriccompactfree-standing

Overview
The very latest in high speed ovens, Merrychef conneX®12 delivers consistent, high quality food, up to 80% faster than conventional cooking methods.

Its compact and stylish design, with cool-to-touch sides, allows it to fit anywhere. The 12” x 12” cavity sits in a 14” width oven allowing it to fit on a standard 600mm worktop. It is easy to install, with ventless technology (built-in catalytic converter) so there is no need for a ventilation hood, and a standard power unit will work off a 13/16 Amp plug.

The new high definition 7” operating screen sits in a robust glass surround and showcases the new easyTouch® 2.0 software. The conneX range delivers an intuitive controller, it works like a mobile phone, and along with over 100 pre-programmed recipes operators can quickly deliver consistent, high quality results.

Born connected, the conneX® range comes with Wi‑Fi and Ethernet connectivity as standard, and offers free subscription for the first 12 months after purchase to the Welbilt KitchenConnect® platform enabling ovens to be monitored and menus updated remotely.

Like all Merrychef high speed ovens the conneX®12 is easy to install, ventless, operates quietly, has cool-to-touch exterior, quick pre-heat and cool down times, and low energy usage in standby, providing high value for money.

Key features
An all-in-one unit ideally suited to rapidly cook, toast, grill, and reheat fresh or frozen food, eliminating the need for other appliances
Largest 30.5 cm x 30.5 cm (12” cavity with a 14” wide footprint)
Fits on a 600 mm worktop
Suitable for front-of-house, operating quietly and easy to install due to ventless cooking capabilities through a built-in catalytic converter, eliminates the need for an extraction fan
Cool to touch exterior makes it safe to locate anywhere with no need to allow space around the unit
Easy to operate with a 7” HD widescreen display and new generation easyTouch® 2.0, icon driven controller, ensuring consistent, high quality dishes
Very easy to clean stainless steel cavity with large rounded corners
Patented easy access front mounted air filter
Wi‑Fi / Ethernet connected with access to KitchenConnect cloud for easy menu update (or update via a USB memory stick)
Most versatile, high speed oven on the market
Cooking up to 20x faster than other cooking methods

Accessories (examples and part numbers)

• Low opening Panini Press with flat bottom plate — Part Number: PSR160 — Dimensions: W 302.2 mm, Opening H 70.5 mm, Closing H 13.5 mm
• High opening Panini Press with flat bottom plate — Part Number: PSR162 — Dimensions: W 302.2 mm, Opening H 79 mm, Closing H 30 mm
• High opening Panini Press with grilled bottom plate — Part Number: PSR163 — Dimensions: W 302.2 mm, Opening H 79 mm, Closing H 30 mm
• Panini Press tray — Part Number: 32Z4186 — W 290 mm x D 230 mm x H 17.8 mm
• Panini Press liner — Part Number: 32Z4153 — W 235 mm x D 292 mm
• Non-stick cooking liner (Green) — Part Number: 32Z4096 — W 285 x D 285 mm
• Non-stick cooking liner (Natural) — Part Number: 32Z4088 — W 285 mm x D 285 mm
• Non-stick cooking liner (Purple) — Part Number: 32Z4160 — W 285 mm x D 285 mm
• Full size mesh cooking tray — Part Number: 32Z4081 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Black) — Part Number: 32Z4080 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Blue) — Part Number: 32Z4101 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Green) — Part Number: 32Z4093 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Red) — Part Number: 32Z4100 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Purple) — Part Number: 32Z4159 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Beige) — Part Number: 32Z4150 — H 13 x W 279 x D 279 mm
• Full size cooking tray - thin base (grey) — Part Number: 32Z4161 — H 13 x W 279 x D 279 mm
• Full size cooking tray - thin base (Purple) — Part Number: 32Z4164 — H 13 x W 279 x D 279 mm
• Half size cooking tray (Black) — Part Number: 32Z4090 — H 13 x W 279 x D 140 mm
• Half size cooking tray (Green) — Part Number: 32Z4094 — H 13 x W 279 x D 140 mm
• Half size deeper cooking tray (Blue) — Part Number: 32Z4099 — H 25 x W 279 x D 178 mm
• Half size deeper cooking tray (Green) — Part Number: 32Z4098 — H 25 x W 279 x D 178 mm
• Half size deeper cooking tray (Red) — Part Number: 32Z4097 — H 25 x W 279 x D 178 mm
• Half size deeper cooking tray (Black) — Part Number: 32Z4076 — H 25 x W 279 x D 178 mm
• Quarter size cooking tray (Black) — Part Number: 32Z4089 — H 13 x W 140 x D 140 mm
• Quarter size cooking tray (Blue) — Part Number: 32Z4125 — H 13 x W 140 x D 140 mm
• Quarter size cooking tray (Green) — Part Number: 32Z4095 — H 13 x W 140 x D 140 mm
• Quarter size cooking tray (Red) — Part Number: 32Z4123 — H 13 x W 140 x D 140 mm
• Cool down pan — Part Number: 32Z4079 — 1/4 size 65 mm deep
• Paddle with hand guard and sides — Part Number: SR318 — W 298 x D 300 mm
• Flat cook plate — Part Number: DB0739 — H 6 x W 300 x D 300 mm
• Griddled cook plate — Part Number: DB0719 — H 6 x W 300 x D 300 mm
• Rear oven panel (Stainless Steel) — Part Number: PSB2115 — H 50 x W 591 x D 355 mm
• Rear oven panel (Black) — Part Number: PSB2116 — H 50 x W 591 x D 355 mm
• Moveable oven stacking trolley — Part Number: SR329 — H 1090 x W 469 x D 636 mm
• Oven cavity liner — Part Number: PSY183 — Width: 644.6 mm, Depth: 455 mm, Door Height: 120 mm, Body Height: 0.9 mm

Technical specifications

• Cavity size: 30.5 cm x 30.5 cm (12” cavity)
• Footprint / external W x D x H: 14" x 25 1/2" x 24 3/4" — 35.6 cm x 64.8 cm x 62.9 cm
• Weight: 111 lb / 50.3 kg
• Power input type: Electric
• Primary power input: 230 V x 50 Hz x 1 PH; 220–240 V x 60 Hz x 1 PH
• Certifications: UL, CE
• Operating/display: 7” HD widescreen with easyTouch® 2.0 software; icon-driven controller; >100 pre-programmed recipes
• Connectivity: Wi‑Fi and Ethernet as standard; KitchenConnect cloud compatibility (first 12 months free subscription)
• Installation: Ventless operation via built-in catalytic converter (no extraction fan required); cool-to-touch exterior allows versatile location
• Cleaning: Stainless steel cavity with large rounded corners; patented front-mounted air filter for easy access
• Performance claims: Delivers consistent, high quality food up to 80% faster than conventional cooking methods; advertised cooking up to 20x faster than other cooking methods
• Variants: conneX®12 available in Standard Power and High Power configurations (same external dimensions and weight per spec cards)
