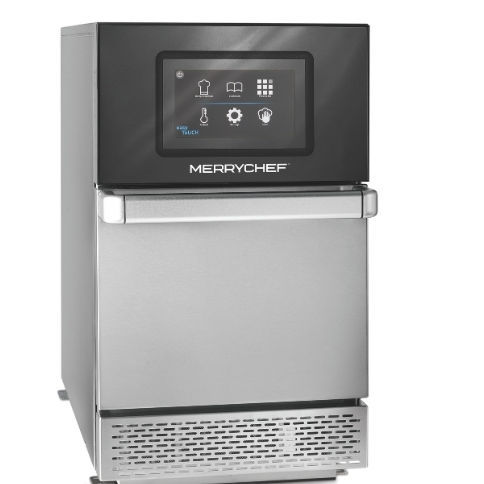

Boat oven CONNEX® 12 MARINE

electricconvectionbuilt-in

Overview
The Merrychef conneX® 12 Marine is a versatile high-speed oven designed for marine catering. An all-in-one unit ideally suited to rapidly cook, toast, grill and reheat fresh or frozen food; it eliminates the need for other appliances and cooks up to 80% faster than conventional cooking methods. The new conneX® range features a 7 in HD touchscreen and the new generation easyTouch® 2.0 intuitive controller. Built from high grade stainless steel inside and out to meet the demands of a corrosive marine environment, it is designed to endure elevated levels of vibration and shock for marine application. A patented easy access front-mounted air filter and a sealed rounded-edge cavity make it easy to clean. Wi‑Fi and ethernet connectivity with access to KitchenConnect cloud allows remote updating of menus across multiple ovens. Marine Ready: supplied with stainless steel mounting brackets for bolted or welded installation.

Features

• An all-in-one unit ideally suited to rapidly cook, toast, grill, and reheat fresh or frozen food, eliminating the need for other appliances
• Largest 30.5 cm x 30.5 cm (12 in cavity) with a 14 in wide footprint
• Very easy to clean stainless steel cavity with large rounded corners
• Cooking up to 20x faster than other cooking methods; also referenced as up to 80% faster than conventional methods
• Wi‑Fi/ethernet connected with access to KitchenConnect cloud for easy menu update (or update via a USB memory stick)
• Cool-to-touch exterior makes it safe to locate anywhere with no need to allow space around the unit
• Patented easy access front-mounted air filter
• Full high grade stainless steel construction inside and out to meet the demands of a corrosive marine environment
• Designed to endure the elevated levels of vibration and shock for marine application
• Supplied with stainless steel mounting brackets for bolted or welded installation

Accessories (selection with part numbers and dimensions as listed)

• Low opening Panini Press with flat bottom plate — Part Number: PSR160 — Dimensions: W 302.2 mm, Opening H 70.5 mm, Closing H 13.5 mm
• High opening Panini Press with flat bottom plate — Part Number: PSR162 — Dimensions: W 302.2 mm, Opening H 79 mm, Closing H 30 mm
• High opening Panini Press with grilled bottom plate — Part Number: PSR163 — Dimensions: W 302.2 mm, Opening H 79 mm, Closing H 30 mm
• Panini Press tray — Part Number: 32Z4186 — W 290 mm x D 230 mm x H 17.8 mm
• Panini Press liner — Part Number: 32Z4153 — W 235 mm x D 292 mm
• Non-stick cooking liner (Green) — Part Number: 32Z4096 — W 285 mm x D 285 mm
• Non-stick cooking liner (Natural) — Part Number: 32Z4088 — W 285 mm x D 285 mm
• Non-stick cooking liner (Purple) — Part Number: 32Z4160 — W 285 mm x D 285 mm
• Full size mesh cooking tray — Part Number: 32Z4081 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Black) — Part Number: 32Z4080 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Blue) — Part Number: 32Z4101 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Green) — Part Number: 32Z4093 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Red) — Part Number: 32Z4100 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Purple) — Part Number: 32Z4159 — H 13 x W 279 x D 279 mm
• Full size cooking tray (Beige) — Part Number: 32Z4150 — H 13 x W 279 x D 279 mm
• Full size cooking tray - thin base (grey) — Part Number: 32Z4161 — H 13 x W 279 x D 279 mm
• Full size cooking tray - thin base (Purple) — Part Number: 32Z4164 — H 13 x W 279 x D 279 mm
• Half size cooking tray (Black) — Part Number: 32Z4090 — H 13 x W 279 x D 140 mm
• Half size cooking tray (Green) — Part Number: 32Z4094 — H 13 x W 279 x D 140 mm
• Half size deeper cooking tray (Blue) — Part Number: 32Z4099 — H 25 x W 279 x D 178 mm
• Half size deeper cooking tray (Green) — Part Number: 32Z4098 — H 25 x W 279 x D 178 mm
• Half size deeper cooking tray (Red) — Part Number: 32Z4097 — H 25 x W 279 x D 178 mm
• Half size deeper cooking tray (Black) — Part Number: 32Z4076 — H 25 x W 279 x D 178 mm
• Quarter size cooking tray (Black) — Part Number: 32Z4089 — H 13 x W 140 x D 140 mm
• Quarter size cooking tray (Blue) — Part Number: 32Z4125 — H 13 x W 140 x D 140 mm
• Quarter size cooking tray (Green) — Part Number: 32Z4095 — H 13 x W 140 x D 140 mm
• Quarter size cooking tray (Red) — Part Number: 32Z4123 — H 13 x W 140 x D 140 mm
• Cool down pan — Part Number: 32Z4079 — 1/4 size 65 mm deep
• Paddle with hand guard and sides — Part Number: SR318 — W 298 x D 300 mm
• Flat cook plate — Part Number: DB0739 — H 6 x W 300 x D 300 mm
• Griddled cook plate — Part Number: DB0719 — H 6 x W 300 x D 300 mm
• Rear oven panel (Stainless Steel) — Part Number: PSB2115 — H 50 x W 591 x D 355 mm
• Rear oven panel (Black) — Part Number: PSB2116 — H 50 x W 591 x D 355 mm
• Moveable oven stacking trolley — Part Number: SR329 — H 1090 x W 469 x D 636 mm
• Oven cavity liner — Part Number: PSY183 — Width: 644.6 mm, Depth: 455 mm, Door Height: 120 mm, Body Height: 0.9 mm

Technical specifications

• Cavity (largest): 30.5 cm x 30.5 cm (12 in cavity) with a 14 in wide footprint
• Control: 7 in HD touchscreen with easyTouch® 2.0 controller
• Construction: Full high grade stainless steel inside and out; sealed rounded-edge cavity for easy cleaning
• Air filter: Patented easy access front-mounted air filter
• Connectivity: Wi‑Fi and ethernet; KitchenConnect cloud access; USB menu update option
• Safety: Cool-to-touch exterior allowing flexible siting without clearance
• Marine readiness: Supplied with stainless steel mounting brackets for bolted or welded installation; designed to endure elevated vibration and shock for marine environments
• Performance claims on page: up to 80% faster than conventional cooking methods; also referenced as cooking up to 20x faster than other cooking methods
• High Power variant dimensions (W x D x H): 14 in x 25 3/8 in x 24 in — 35.6 cm x 63.5 cm x 61.9 cm; Weight: 129.4 lb / 58.7 kg
• Standard Power variant dimensions (W x D x H): 14 in x 25 1/4 in x 24 3/8 in — 35.6 cm x 64.1 cm x 61.9 cm; Weight: 110.2 lb / 50 kg
• Power Input Type: Electric
• Primary Power Input: 208‑240 V x 60 Hz x 1 PH
• Certifications shown: UL, CE
