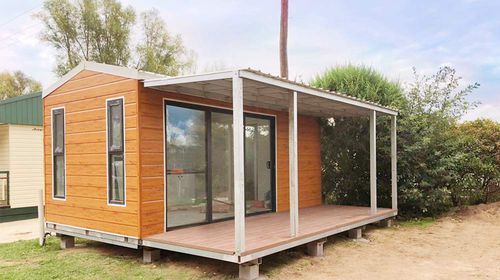

It can be a good design of bungalows, mining camp, granny flat. small house, mini house etc..
Roof: slope roof
Main structure: Light gauge steel frame system based on Deepblue Smarthouse Patented folding design
Cladding: WPC cladding /16mm metal cladding with PU insulation
Lining: wooden composite plastic lining 10mm
Floor: CFC 18mm with 10mm HDF flooring or stone plastic flooring waterproof and easy to clean.
Ceiling: PVC ceiling
Roofing: color bond flooring sheeting
Electrical: AS/NZS /CE /UL wires one ceiling LED light and 4 switches and 6sockets.
windows: AS/NZS alum. sliding windows or another standard to meet the client's request
Door: 2105mmx1605mm alum. sliding door with lock and keys.
Main: distributor box with breakers.
Bathroom and kitchen included.
Cold-formed steel (CFS), or metal stud framing, is made from structural quality sheet steel formed into C-sections and other shapes by roll forming steel through a series of dies. CFS, a preferred framing material, is:
Versatile and can be cut to exact lengths
Dimensionally stable and won’t expand or contract with changes in moisture content
Lightweight compared to wood and concrete
Durable and won’t warp, split, crack or spall when exposed to the elements
Sustainable and 100 percent recyclable
Highest in strength-to-weight ratio of all structural framing materials, according to the Steel Framing Industry Association
Non-combustible, a safeguard against fire accidents
