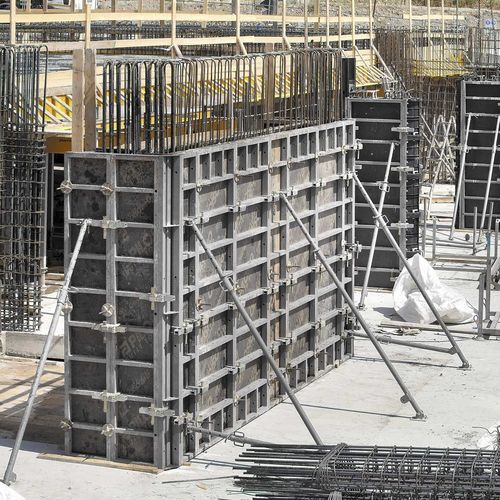

Frame formwork P300

modularmetalwall

P300 is an extremely versatile steel panel formwork for crane assisted forming. It offers a highly efficient solution for all sizes of projects as well as switching to gang forming with no additional hardware. Advantages Entire pre-assembled units can be lifted into place by crane A clever grid of panel widths means less use of wood fillers P300 shaft corners facilitate simple and rapid forming as well as stripping of shafts P300 universal panels are ideal for forming cross-sections of columns in 5cm increments, so there is no need for an additional column formwork system at the site Longer service life due to the robust, galvanized steel frame profile. Technical Data Frame height: 100 mm Frame finishing: hot-dip galvanized Maximum pour pressure: 60 kN/m2 (80 kN/m2 for columns) 3 tie-rods per 3 m height 2 clamps per 3 m height for connecting and aligning Plywood thickness: 18 mm Standard weight: 37 kg/m2
