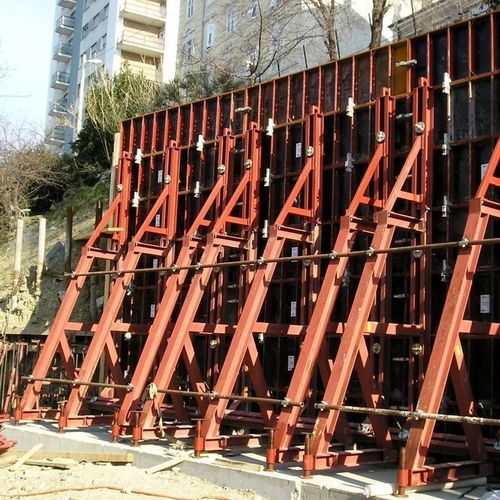

Frame formwork MINIMAG

modulargalvanised steelwall

The lightweight MINIMAG panels are easy to handle and can be erected quickly by hand. Minimag is flexible and ideal for small and medium job sites. Thanks to its clever grid of panels MINIMAG can be used with a smaller number of wooden fillers. Advantages Strong connection with an aligning clamp: large panel areas can be lifted as one in a single crane operation Can be used both vertically and horizontally Six width dimensions for easy planning and forming Large range of practical and safe accessories to meet a variety of project needs Technical Data Frame height: 120 mm Frame finishing: hot-dip galvanized Maximum pour pressure admissible: 60 kN/m2 2 tie-rods per 3 m height 2 clamps per 3 m height for connecting and aligning Standard weight: 32 kg/m2
