Frame formwork system

modularsteelwall

Product summary

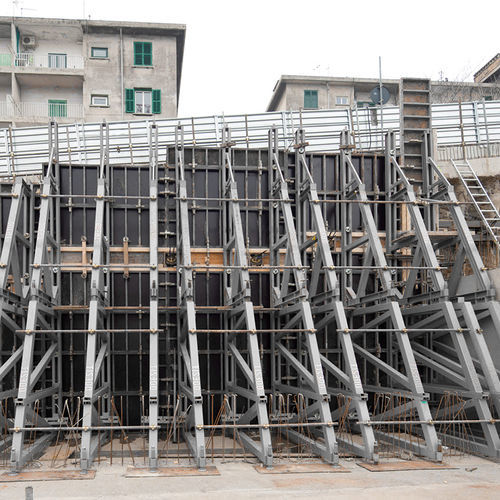

Single-sided casting support frame designed to support wall formwork systems. Compatible with Pilosio wall formworks and intended as a simple, movable support structure for site operations.

Characteristics

• Steel frames designed to carry the full range of Pilosio wall formworks.
• Available in three main sizes and combinations to obtain pour heights from 3 m up to 8 m.

Advantages

• Compatibility with all Pilosio wall formworks
• Designed to be moved together with the wall formwork system to streamline operations on site
• Simple components for fast on-site assembly

Applications

• High-rise buildings and skyscrapers
• Industrial construction
• Bridge and civil engineering works

Technical Data

• Frame H = 450 cm for pour height up to 4 m
• Frame H = 450 cm + Frame 150 cm for pour height up to 6 m
• Frame H = 450 cm + Frame 150 cm + Frame 200 cm for pour height up to 8 m

Technical specifications

• Material: steel frames designed to support Pilosio wall formworks
• Available sizes: combinations to reach pour heights of 3 m to 8 m (examples: 450 cm; 450+150 cm; 450+150+200 cm)
• Compatibility: all Pilosio wall formworks
• Assembly: components designed for easy assembly and to be moved together with wall formwork systems
