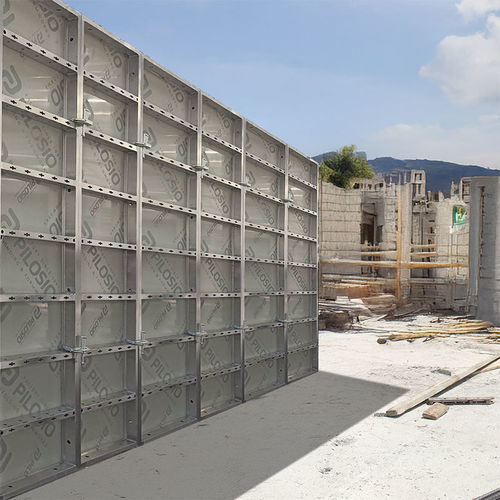

Aluminum formwork panel P75

aluminum alloyplywoodfor foundation

Overview
The P75 aluminium formwork by Pilosio is a modular, lightweight panel system for casting vertical concrete elements such as walls, foundations and stairwells. Panels combine high mechanical strength with corrosion resistance for extended site use.

Characteristics

• Modular vertical panel formwork for walls and other vertical concrete elements.
• Frame manufactured from AW-6082 T6 aluminium alloy for strength and corrosion resistance.
• Panels available in multiple sizes to provide high on-site flexibility.
• Frame with 100 mm profile ensuring stability in extended configurations.
• Casting surfaces fixed from the rear and available in three options:
  • Birch plywood with phenolic coating
  • Elephant: plywood with wood/PVC composite coating
  • Alkus: PVC surface
• Maximum concrete pressure resistance: 60 kN/m².
• Can be used vertically or horizontally.

Advantages

• Light panels (approx. 21 kg/m²) for easier handling.
• Designed to be moved manually on site without a crane.
• Suitable for fair-faced concrete finishes.
• Durable aluminium components for long service life.
• Compatible with the P300 steel formwork system.
• Well suited to sites with limited access or without lifting equipment.

Applications

• Residential buildings
• High-rise construction
• Industrial facilities
• Bridge construction
• Renovation and restoration projects

Technical Data

• Maximum panel size: 75×300 cm
• Panel heights: 150 cm or 300 cm
• Panel widths: from 30 cm to 75 cm
• Maximum concrete pressure: 60 kN/m²
• Frame profile: 100 mm
• Casting surface thickness: 15 mm
• Weight of 75×300 cm panel: 46.9 kg
• Weight of 75×150 cm panel: 24.6 kg

Specifications

• Brand: Pilosio
• Model: P75
• Frame material: AW-6082 T6 aluminium alloy
• Casting surface options: Birch plywood (phenolic), Elephant (wood/PVC composite), Alkus (PVC)
• Maximum concrete pressure resistance: 60 kN/m²
• Maximum panel dimensions: 75×300 cm
• Available panel heights: 150 cm, 300 cm
• Available panel widths: 30–75 cm
• Casting surface thickness: 15 mm
• Panel weight examples: 75×300 cm = 46.9 kg; 75×150 cm = 24.6 kg
• Panel mass per area: approx. 21 kg/m²
• Frame profile: 100 mm
