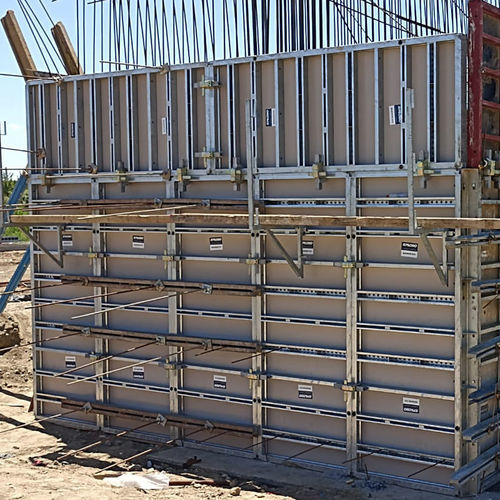

Steel formwork panel MAGNUM 2.0wallfor construction
Add to favorites
Compare this product
Characteristics
- Material
- steel
- Application
- wall, for construction
Description
Characteristics
Advantages
Applications
Technical Data
Model / Technical specifications
- Robust, crane-set modular panel formwork designed for large-area wall forming and easy handling on site.
- MAGNUM connectors and accessories enable straightforward shuttering workflows, reduced cycle times and safe crane transfer of large-area units.
- The heavy-duty steel-frame system provides versatile use across demanding construction projects.
Advantages
- High flexural strength from 12 cm steel profile; maximum concrete pressure 80 kN/m2 (100 kN/m2 for columns).
- Standard panels up to 3.00 m x 2.40 m, allowing rapid forming with only 2 tie positions.
- Dedicated MAGNUM shaft corners simplify fast forming and stripping of shafts.
- Efficient site operations with five panel widths; panels usable both horizontally and vertically.
Applications
- High-rise buildings and skyscrapers
- Industrial construction and production facilities
- Bridge and civil engineering structures
Technical Data
- Frame profile height: 120 mm
- Frame finishing: hot dip galvanized
- Maximum pour pressure: 80 kN/m2 (100 kN/m2 for columns)
- Tie spacing: 1 tie-rod every 3.6 m2
- Clamping spacing: 2 clamps every 7.2 m2
- Plywood facing thickness: 18 mm
Model / Technical specifications
- Model: MAGNUM 2.0
- System type: modular heavy-duty steel frame panel formwork, crane-set
- Frame profile: 12 cm steel profile (high flexural strength)
- Standard panel sizes: up to 3.00 m x 2.40 m
- Frame height: 120 mm
- Frame finishing: hot dip galvanized
- Maximum concrete pressure: 80 kN/m2 (100 kN/m2 for columns)
- Tie/clamp spacing: 1 tie-rod every 3.6 m2; 2 clamps every 7.2 m2
- Plywood facing thickness: 18 mm
