Modular formwork system SVELTcurvedcircularmetal
Add to favorites
Compare this product
Characteristics
- Type
- modular, circular, curved
- Material
- metal
- Applications
- wall, for civil engineering, for public works, for water tanks
- Other characteristics
- adjustable
Description
Characteristics
Advantages
Applications
Technical data

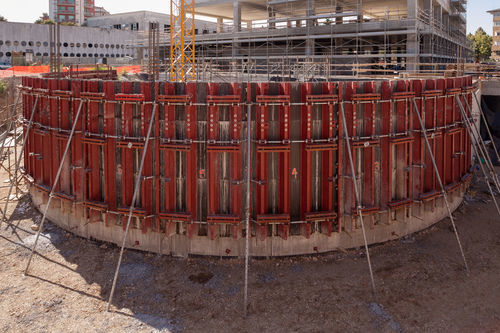

- Adjustable circular modular formwork for casting curved concrete walls.
- Compatible with standard Pilosio system accessories such as plungers, service brackets and alignment clamps.
Advantages
- Radius adjusted on-site using a screw adjuster for quick and precise curvature control.
- Hot-dip galvanised frame finish provides corrosion resistance and extended service life.
- System can be combined with P300 frame formwork for larger or mixed configurations.
- Plywood panels are easy to maintain, repair and replace, reducing downtime.
Applications
- Industrial buildings and plant construction
- Bridge and infrastructure construction
Technical data
- Frame profile height: 100 mm
- Frame finish: hot-dip galvanised
- Maximum permissible pressure: 60 kN/m2
- Minimum bending radius: 250 cm
- Available frame heights: 1 m, 1.5 m, 3 m
